Trams in
Oslo

Trams in Oslo are operated by Trikken, a subsidiary of AS Oslo Sporveier who is the transit authority responsible for planning. AS Oslo Sporveier owns the vehicle fleet and rents it to Trikken.

Much of the operation, especially downtown, operates in mixed traffic on city streets. Many stops are being converted to have level boarding with the partially low floor SL95 fleet - some by adding island platforms on wider streets, and some by extending a sidewalk "bump" out to the track. In some situations, track is located in the curb lane so neither is necessary.

Out of the downtown area, much of the system operates as true LRT as they have track in an isolated right of way in the centre of a road or in a totally private right of way. One section on one line uses track that previously was shared the T-bane (metro/subway) system.

Contents

Toronto Comparison

Though Toronto will have separate streetcar and LRT systems, Oslo provides an example of a system that operates much like Toronto's streetcars in the downtown core, while becoming a true LRT operation outside of the core.

Another aspect of Oslo's system that will also not be seen in Toronto is the mix of two different types of vehicles. One type of vehicle is single ended with operator controls at one end and passenger doors only on the right side of the vehicle, while the other type of vehicle is double ended with operator controls at each end and passenger doors on both sides. Toronto's streetcar network will continue to use vehicles of the former type, while the new LRT lines will use vehicles of the latter type.

Historically, Trikken shares some experiences with the TTC. Originally starting as private horse car lines that were later electrified, the lines were later amalgamated into a civic operation. Later on, tram abandonment was the plan until that decision was reversed in the 1970s.

Many downtown areas of Oslo are served by at least two routes that interline in the city centre. This provides more frequent service in the core than would be possible with a single route.

Oslo also has a waterfront attaction, Aker Brygge, that is somewhat reminiscent of Harbourfront. Tram operations in the area, which opened in 1995, are a good example of what streetcar operations in Toronto could be along Queen's Quay.

System Highlights and Route Details

Ride Descriptions

Since routes interline in the city centre (Sentrum), the first part of this section will have some photos there, followed by trip descriptions out to the end of each line.

Sentrum

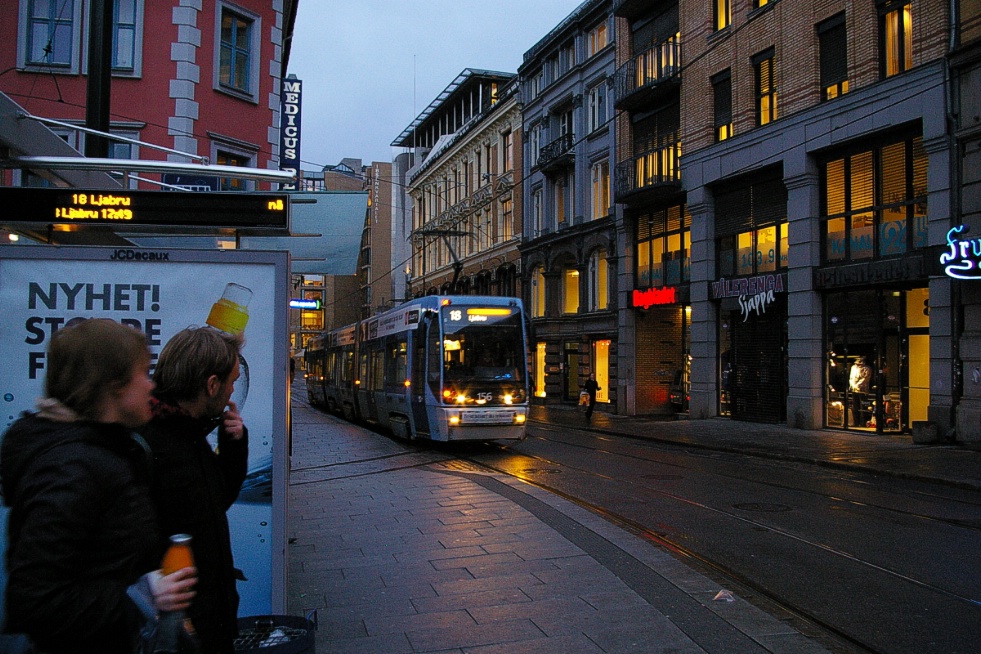

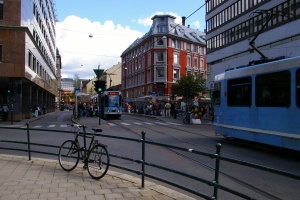

Some photos around the city centre:

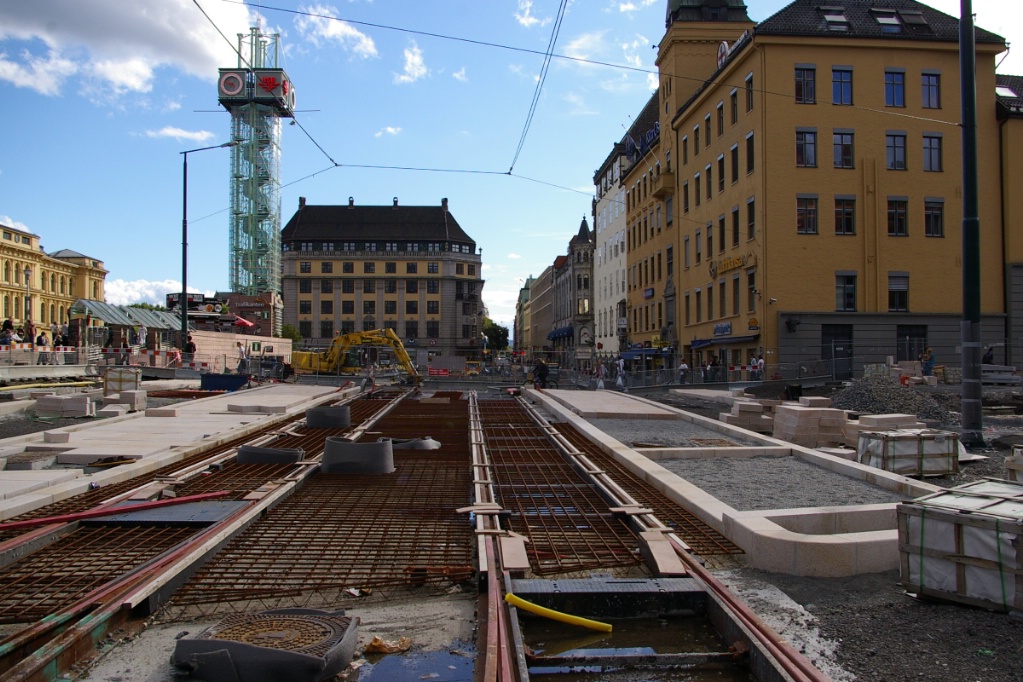

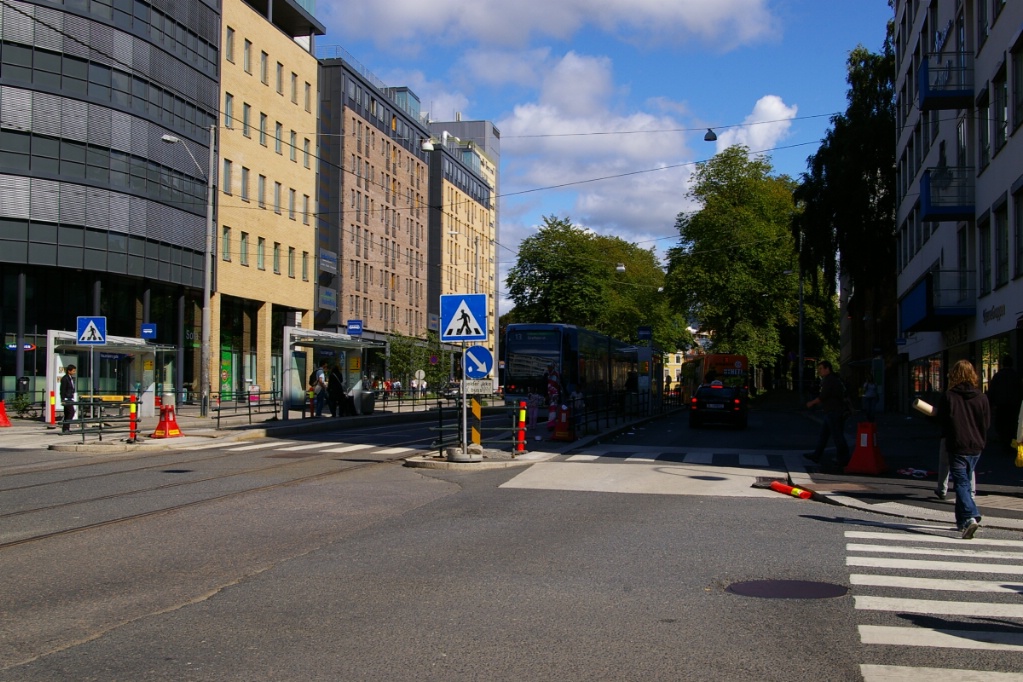

Construction on Storgata in the summer of 2008. Routes 12, 13, and 19 were re-routed.

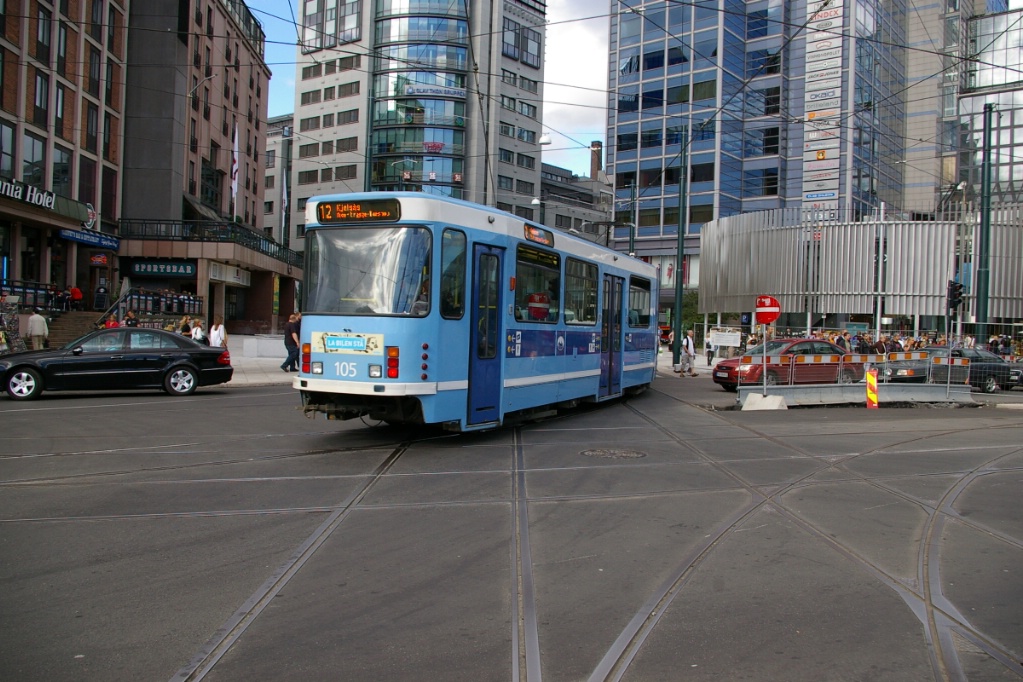

Route 12 to Kjelsås turning north just east of Jernbane-torget.

Route 18 to Ljabru approaches Jernbane-torget.

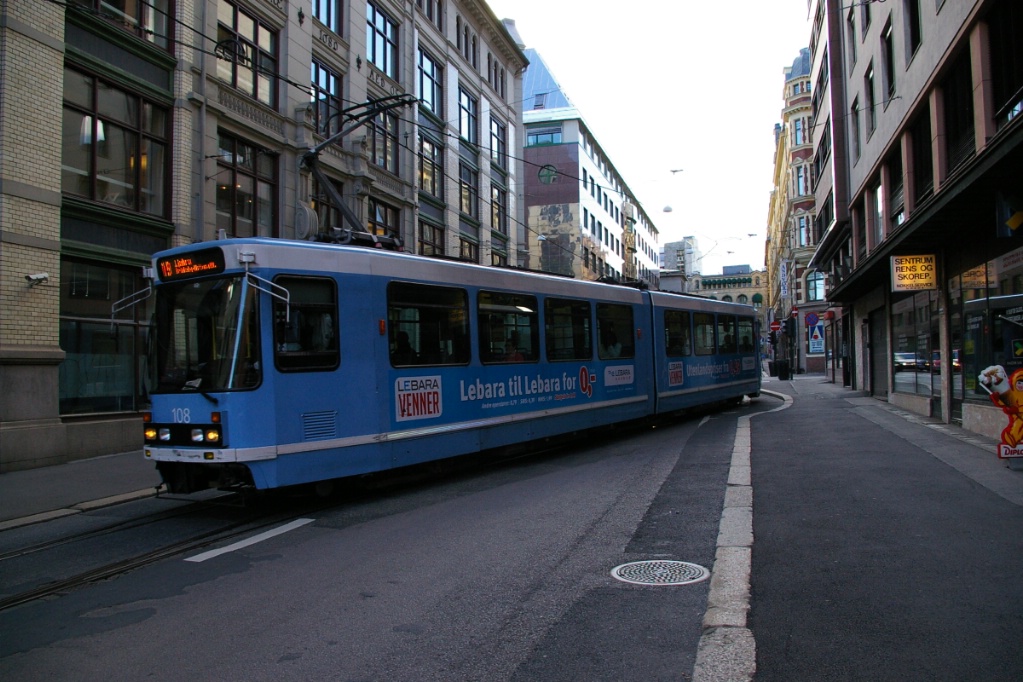

Route 18 tram arriving at Prof. Aschehougs plass.

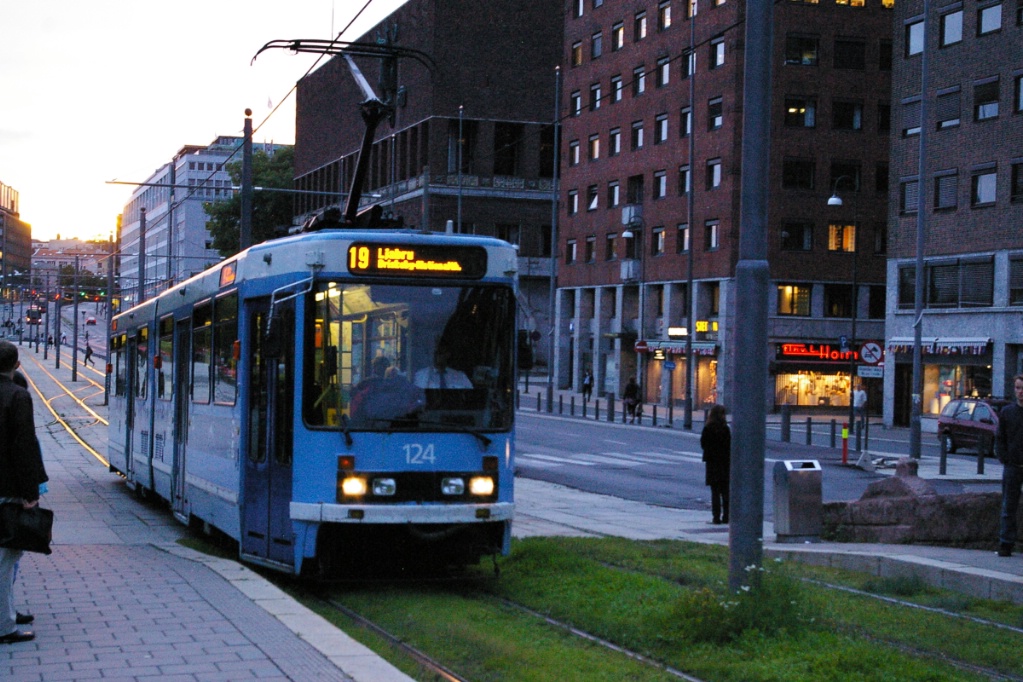

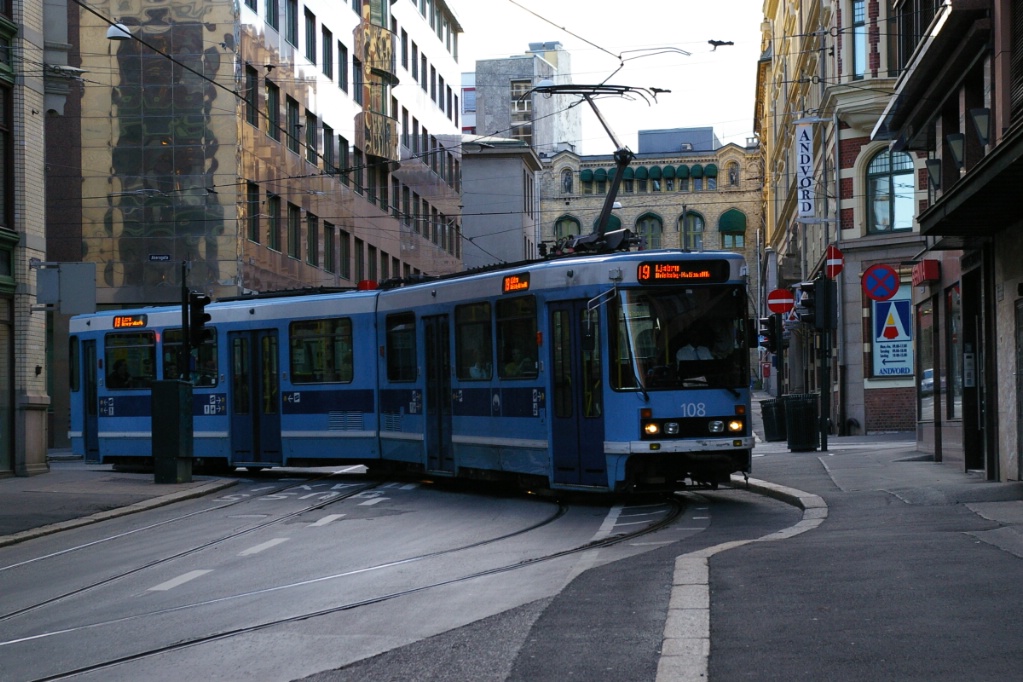

Route 19 arriving at Nationaltheatret.

Route 12 to Kjelsås at Frogner plass. This stop is located in the centre of a traffic circle.	Route 19 to Majorstuen turning at Stortorvet.	At Majorstuen, Route 11 trams become Route 12 (foreground) and vice versa. Buses also use this stop.

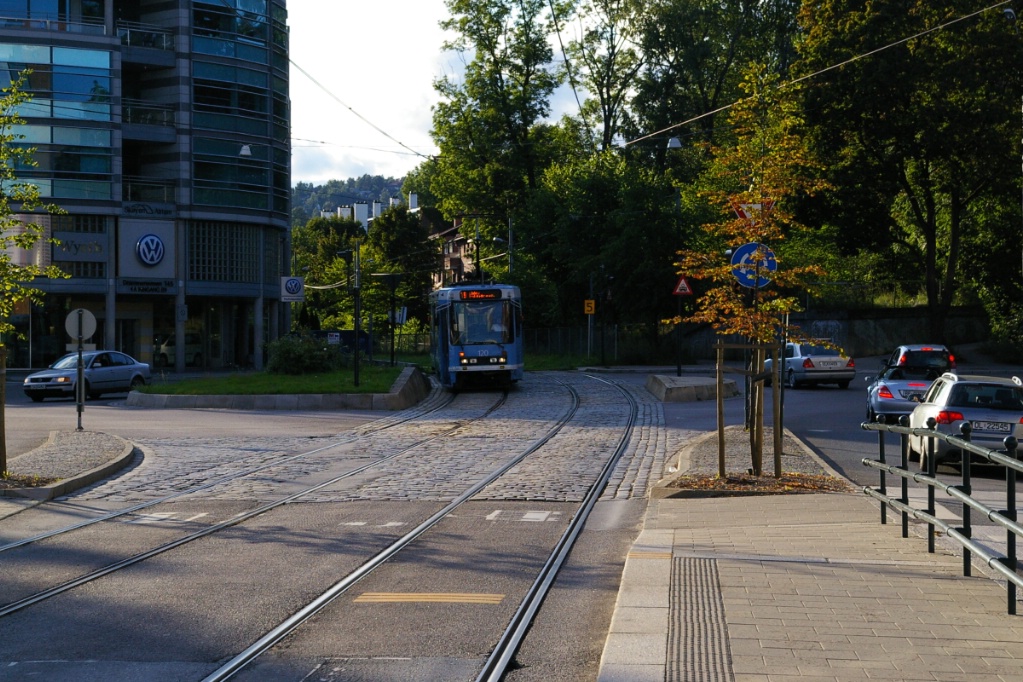

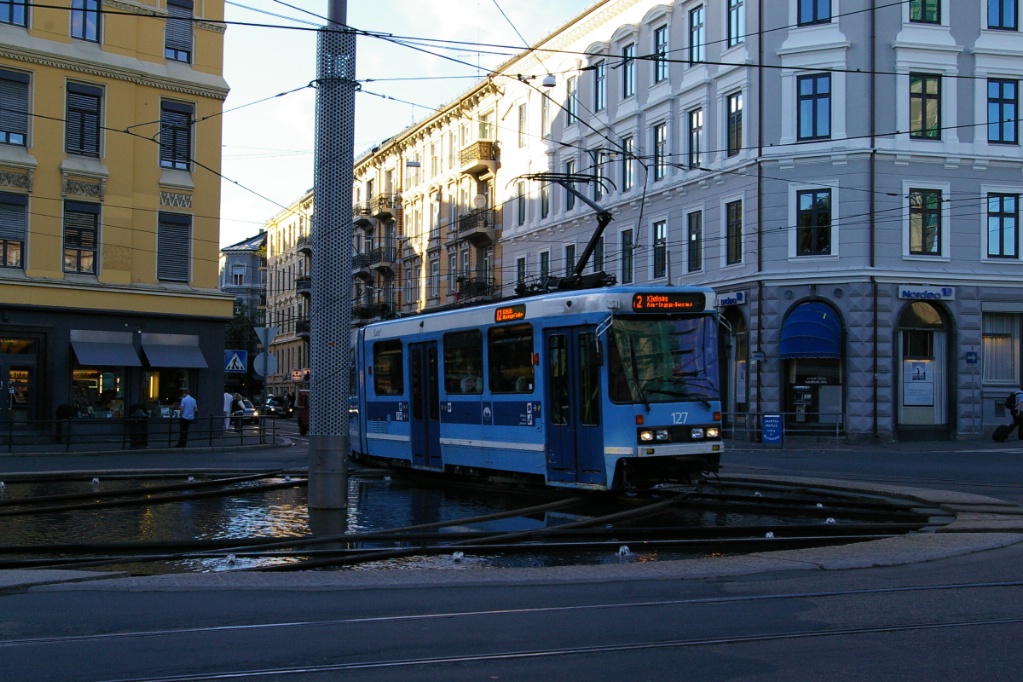

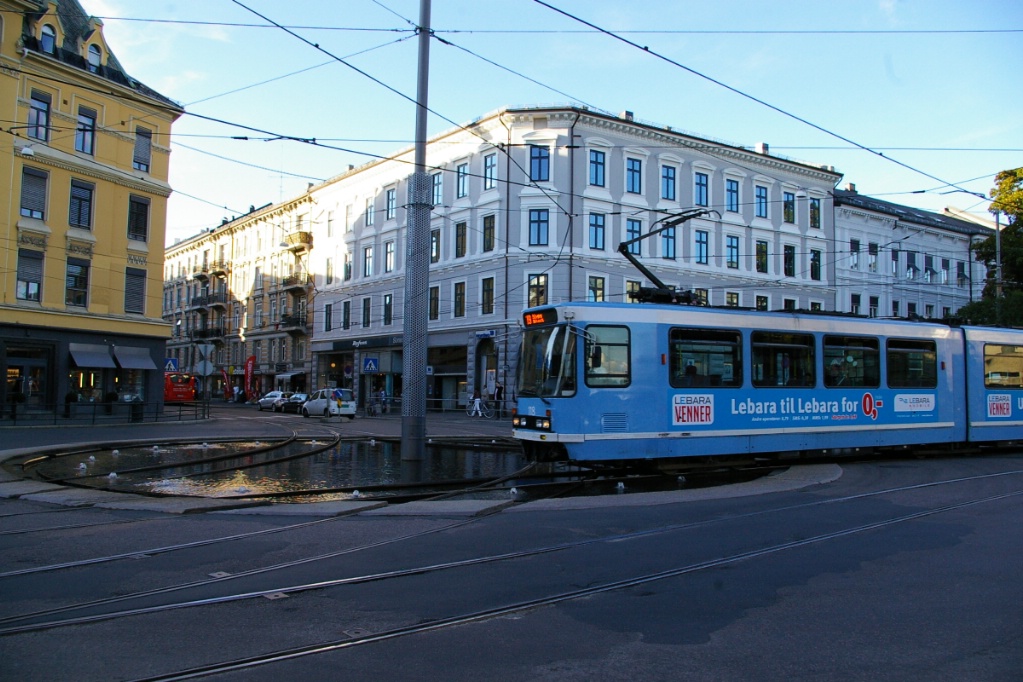

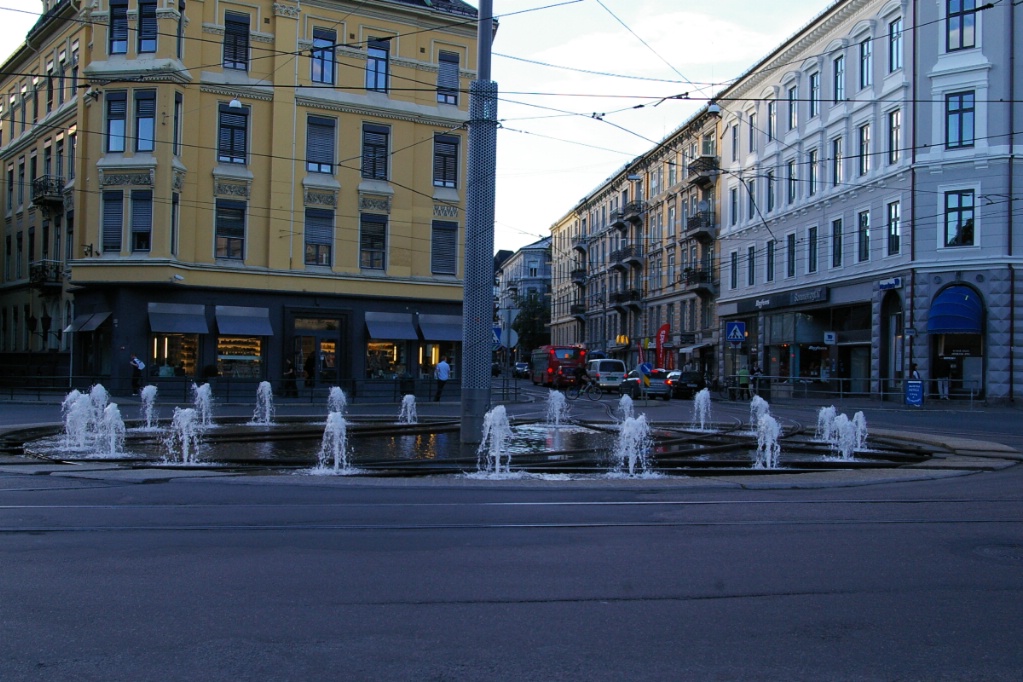

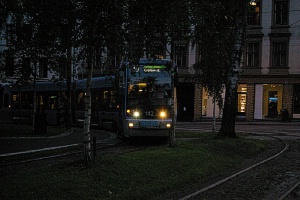

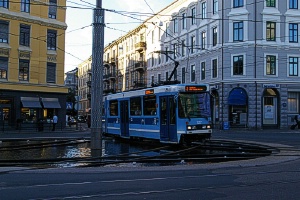

Just west of Solli, there is a wye intersection in a traffic circle with a fountain. Trams pass through the fountain. LEFT: Route 12 to Kjelsås passes through wye the fountain. RIGHT: With no traffic passing, fountain operates at full; when cars pass near, it is slightly reduced; when trams pass through, it is greatly reduced.

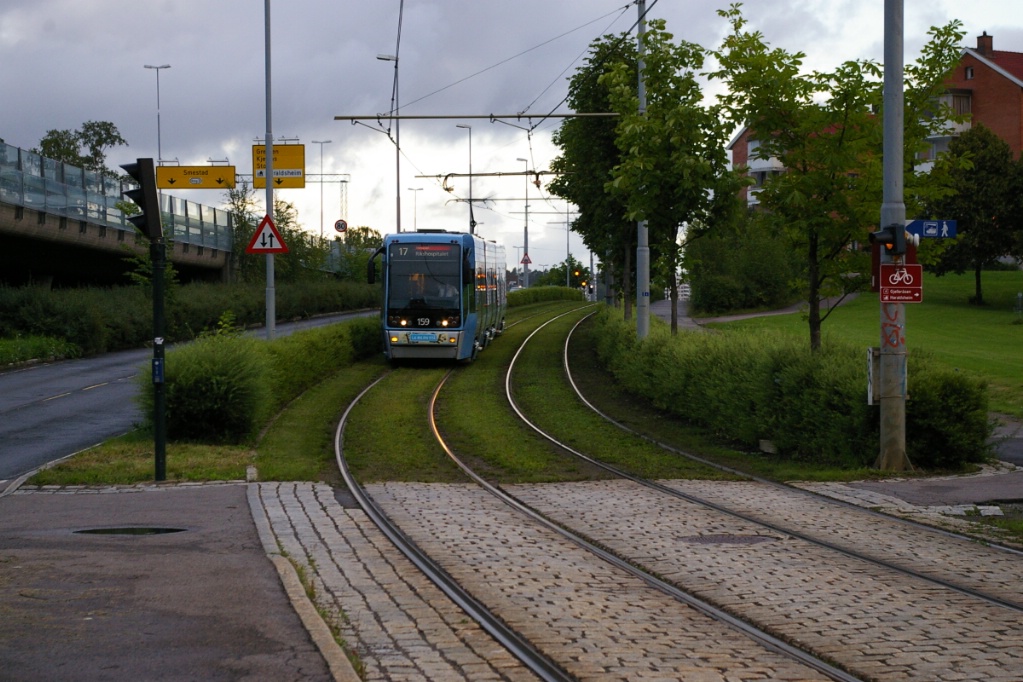

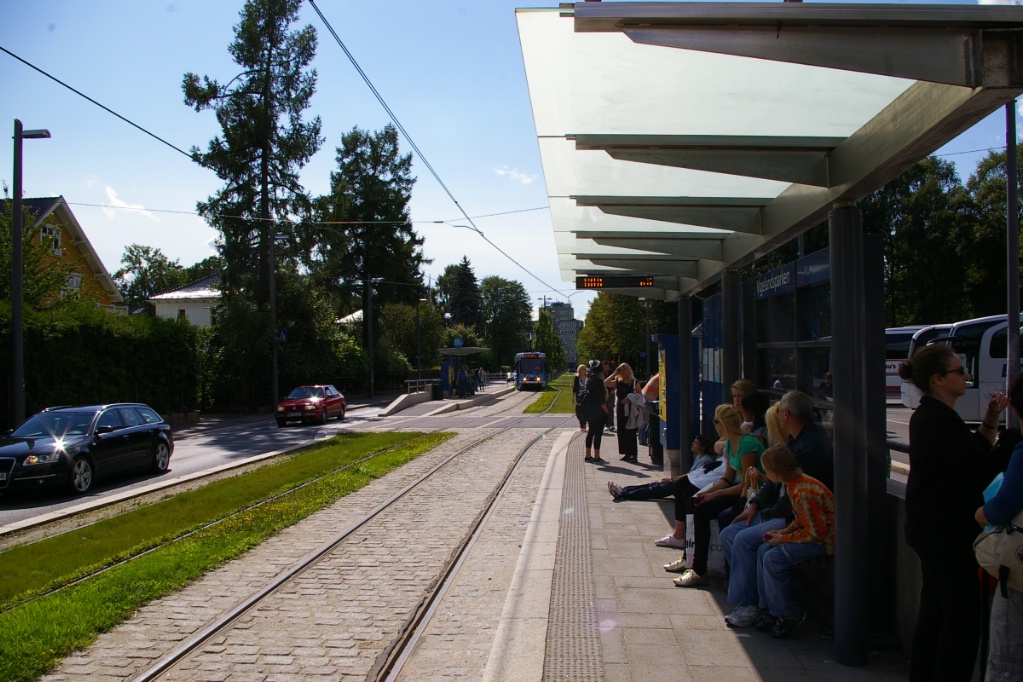

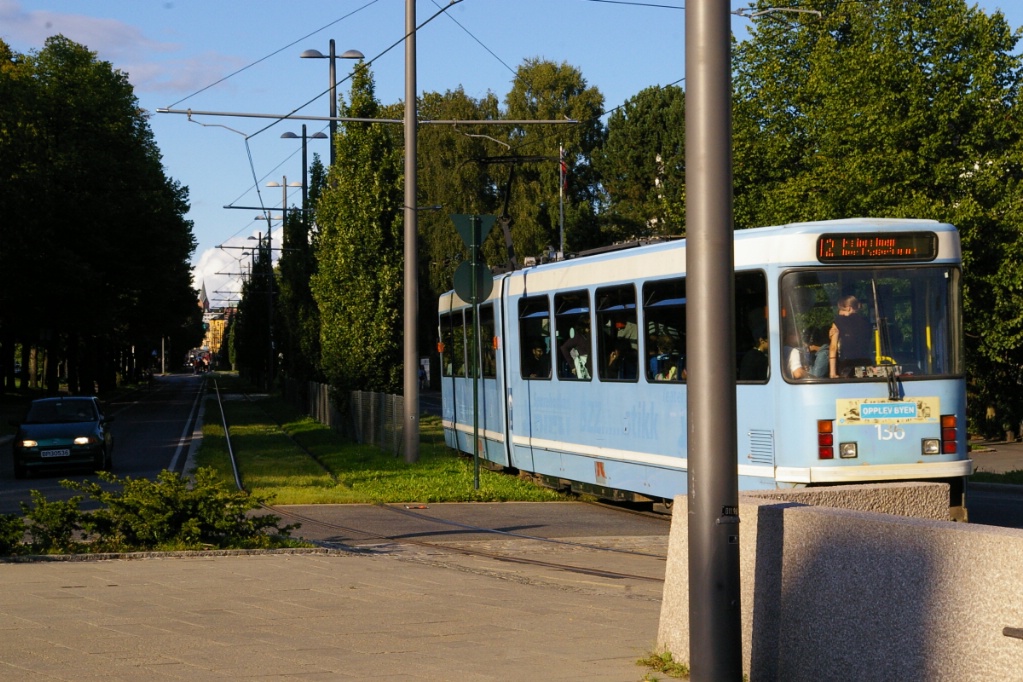

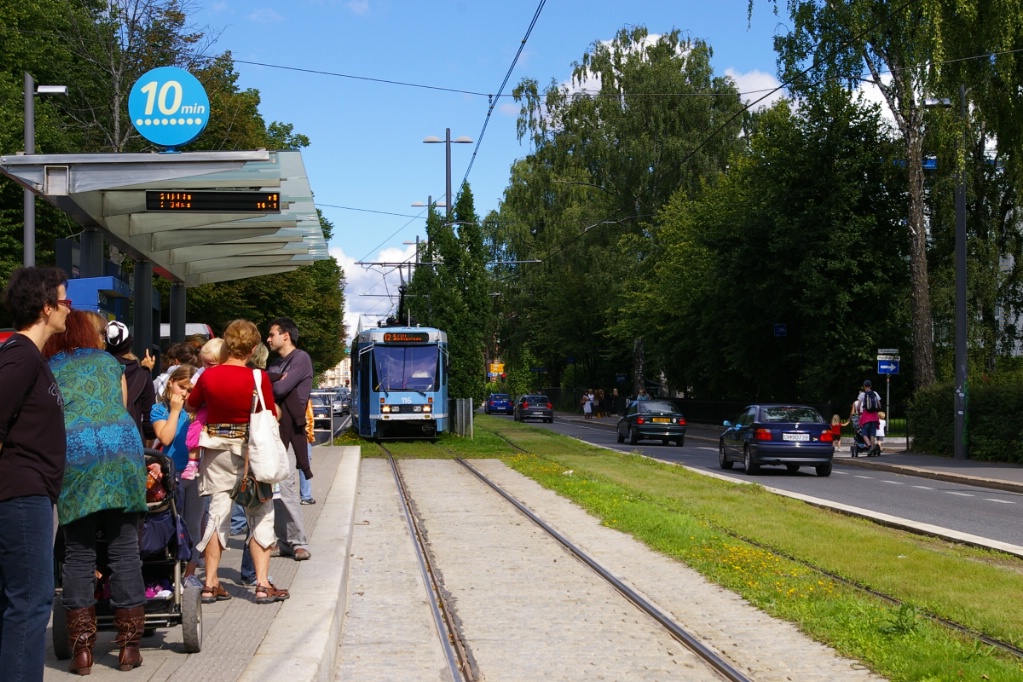

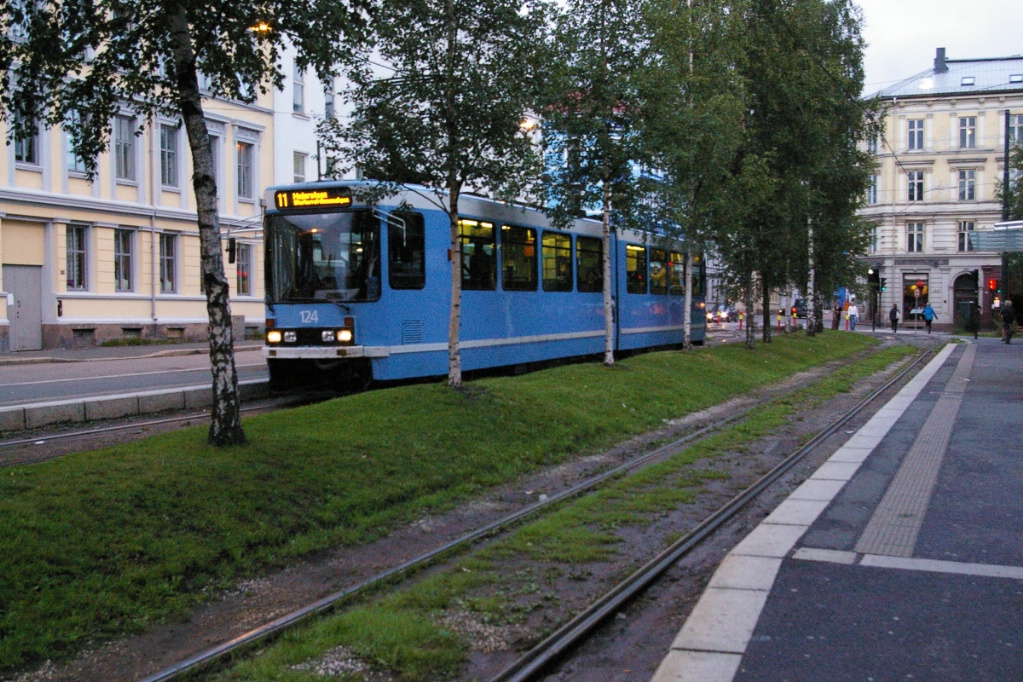

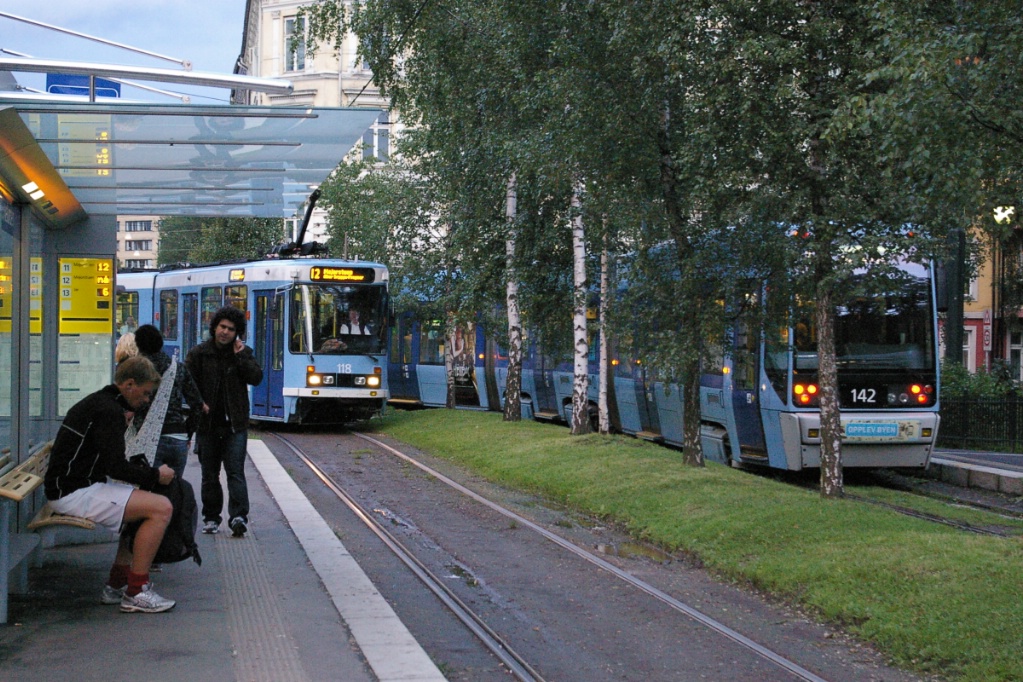

"Green" median rights of way:     LEFT: At Vigelandsparken, a route 12 tram to Majorstuen can be seen approaching CENTRE: Route 12 to Majorstuen leaving Frogner plass and entering the median right of way on Kirkeveien RIGHT: Route 12 to Majorstuen leaving Frogner plass and entering the median right of way on Kirkeveien

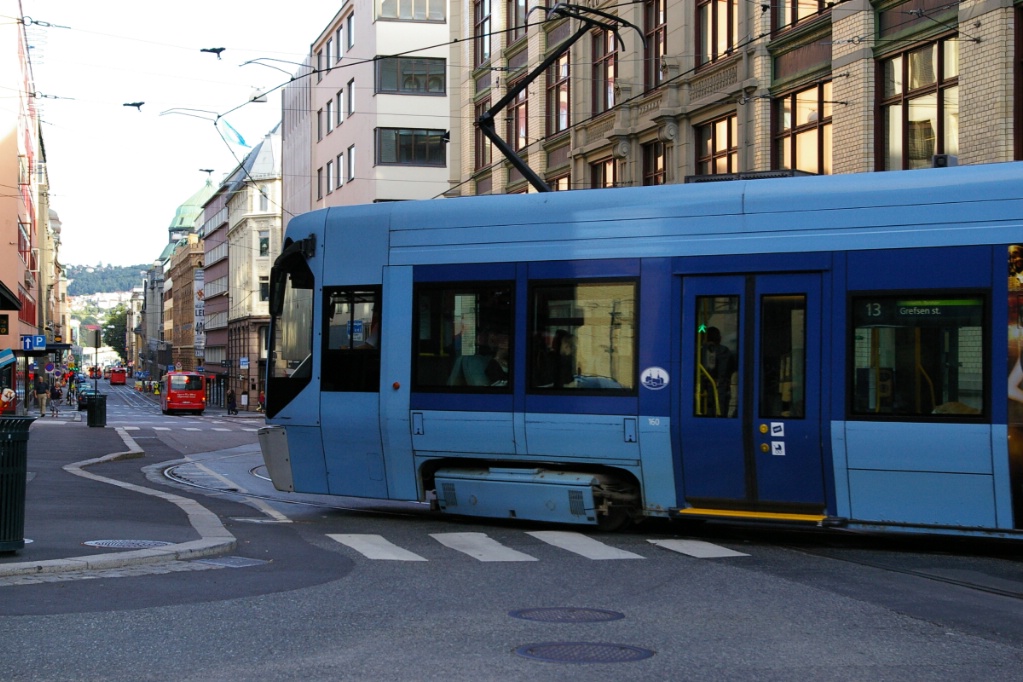

Accommodating minimum turning radius with tight streets...     Turning from the curb lane on Akersgata to the curb lane on Tollbugata requires a wide turn to the left side Tollbugata. LEFT and RIGHT: View from the west. CENTRE: Route 19 to Ljabru making the turn seen from the east. BELOW LEFT: A little further east as the tram returns to the curb lane. BELOW RIGHT: Even buses need to make a wide turn here!

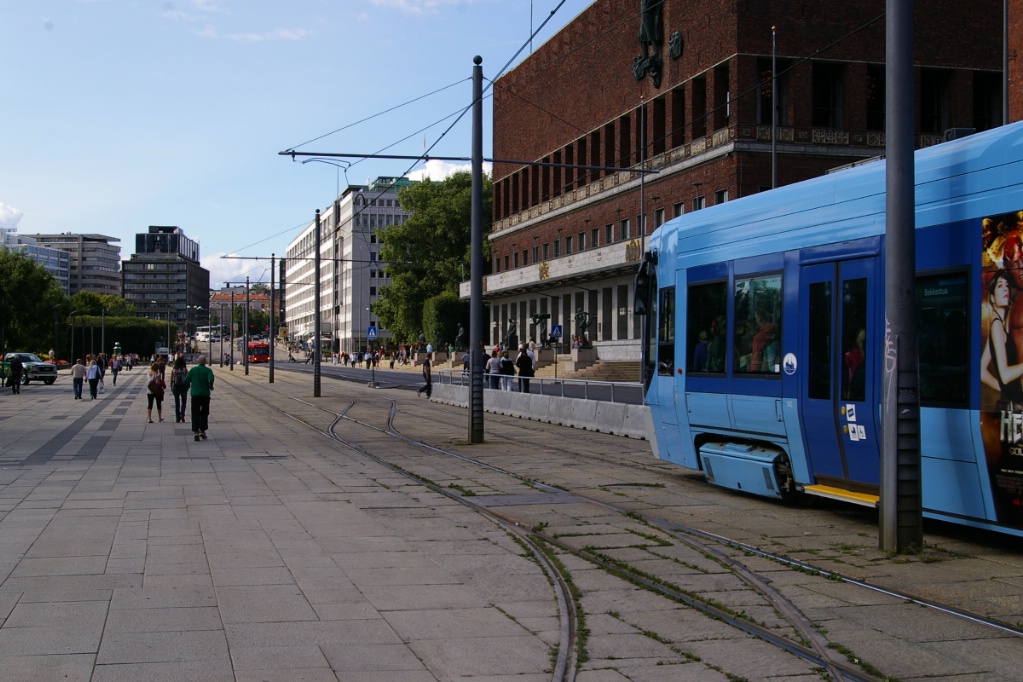

In the city centre, a branch along the waterfront past Aker Brygge, is travelled by route 12...     LEFT: Route 19 at Rådhusplassen. This stop is served by route 12, but construction in 2008 had routes 13 and 19 detour through this area. CENTRE: Route 12 to Kjelsås at Aker brygge. RIGHT: Route 13 to Bekkestua just west of Rådhusplassen.

Inbound Route 13 at Jar.

Route 13

The trip on Route 13 from Jar to Nationaltheatret, takes approximately 46 minutes.

Since Jar was once used by both T-bane and trame operations, there is both a turning loop and a crossover. SL79 trams must use the loop, while SL95 may be turned back using either.

Outbound Route 13 approaching Lilleaker.

The alignment of Jar is approximately north-south. Leaving Jar, the line curves to the east on its own right of way at the point where the former T-bane line continued further north. The overhead wiring is a full catenary installation, but changes to non-catenary just west of the next station.

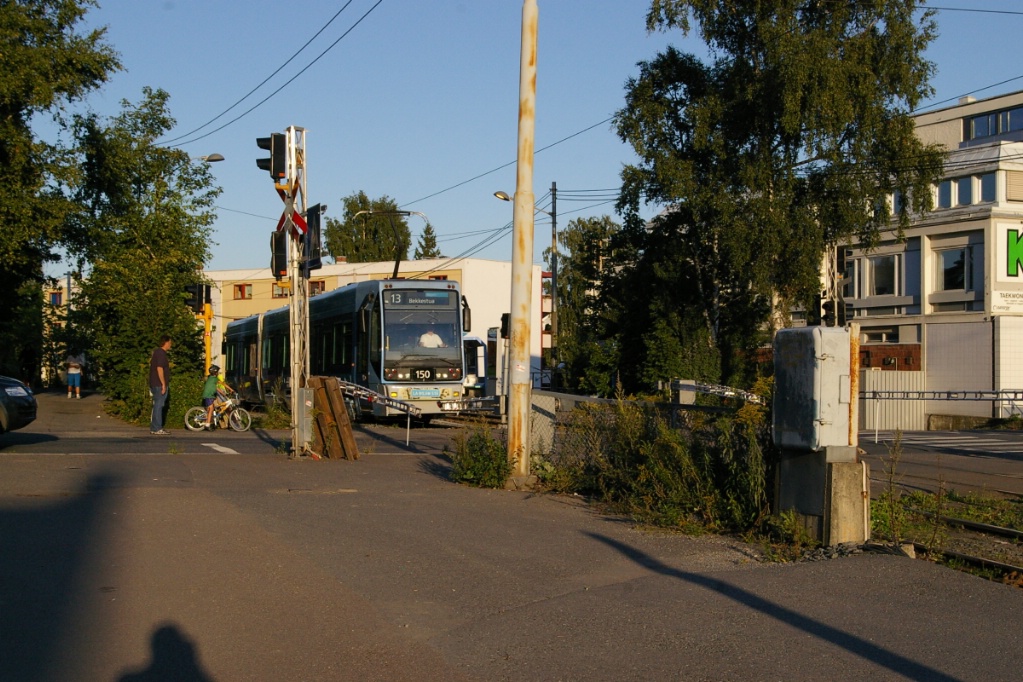

Crossing just east of Lilleaker.

The next station is Øraker followed by Lilleaker. The line continues on its own right of way where it crosses roads with a railway-type crossing that is signalled with gates.

The next stops are Sollerud, Furulund, Ullern, Abbediengen, and Hoff. Following that is Skøyen, where a loop exists west of the stop.

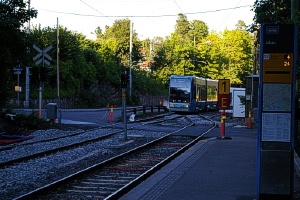

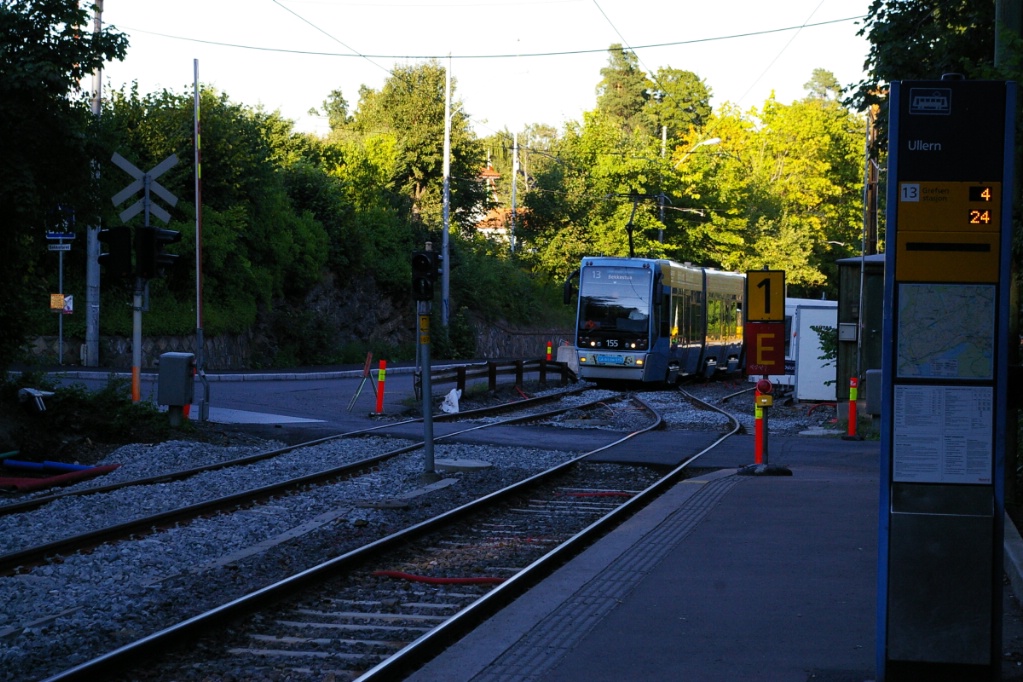

Just east of Ullern in August 2008, outbound Route 13 is leaving temporary single track section where track replacement construction is underway.

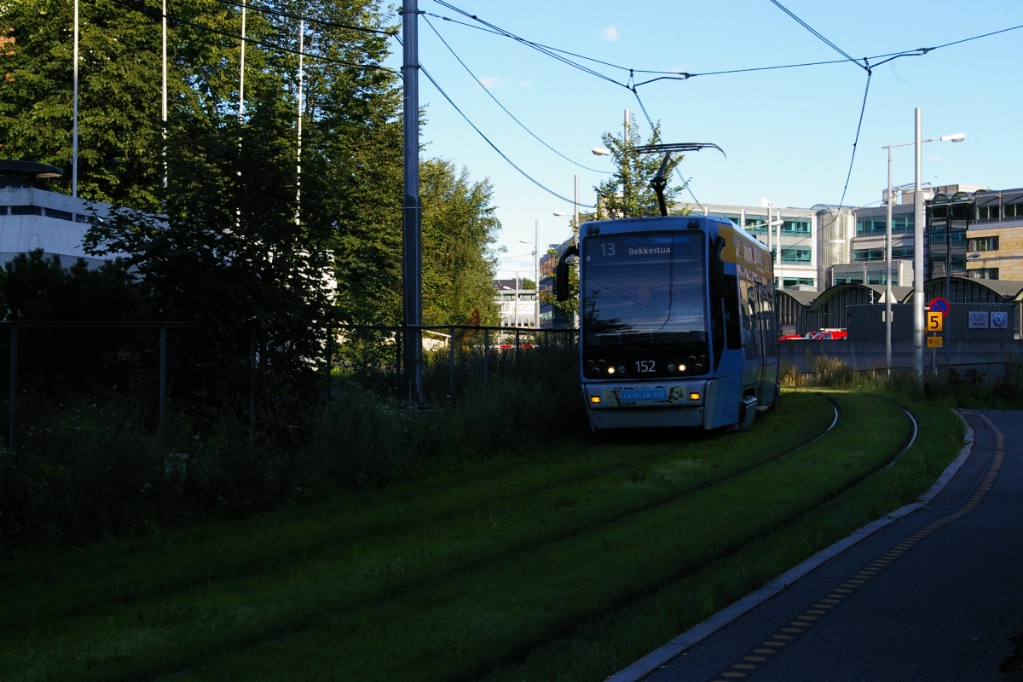

Outbound Route 13 approaches Skøyen on another "green" right of way. A few locations in Oslo have a grass right of way.

When a route 10 existed and provided service to Jar (Bekkestua late at night), this was the terminal point for route 13 (see photo of 1997 map).

In the summer of 2008, road construction at Nathionaltheatret had Routes 13 and 19 detoured. Both routes followed the path of Route 12 via Aker Brygge to Solli, where Route 19 continued west to Skøyen. In this photo, Route 19 heading for Ljabru is leaving the private right of way just west of Thune.

Route 19 to Ljabru at Thune as an outbound Route 13 is approaching.

The right of way continues for one more station, where it ends just before the line reaches Thune. The private right of way ends with the line passing through a traffic circle and onto a median right of way on Drammensveien where the Thune stop is. The median right of way continues east for another block where the trams join mixed traffic on Drammensveien.

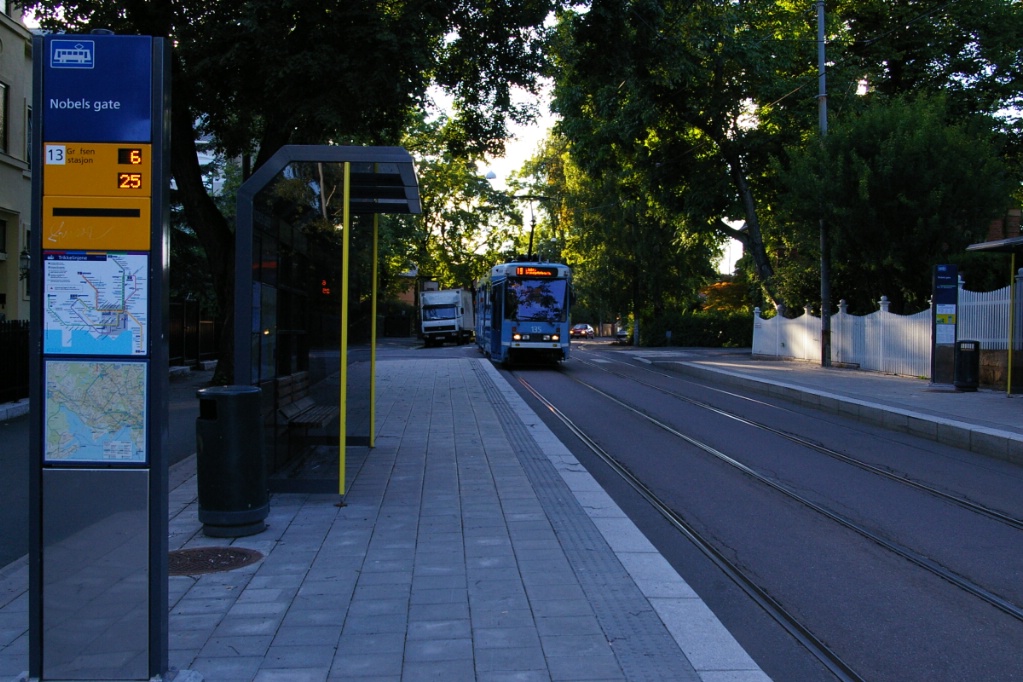

Nobels gate stop, like others on Drammensveien, has sidewalk and curb "bump-out".

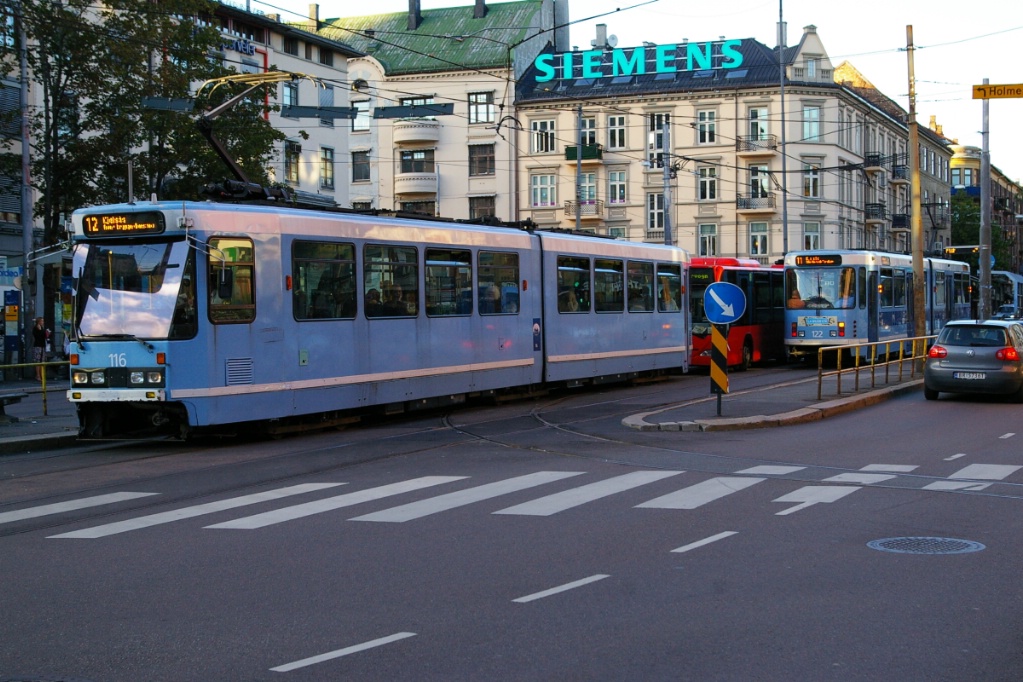

Route 12 to Majorstuen at Solli.

Eastbound Route 13 leaving Nationaltheatret.

Much of Drammensveien is a three lane road, with westbound trams in the curb lane, and eastbound in the centre. Eastbound stops have the sidewalk and curb "bump-out" to the middle lane. Continuing east, the stops Nobels gate, Skarpsno, and Skillebekk have this characteristic.

East of Skillebekk, the line returns to a median right of way, and passes through a traffic circle before reaching Solli. The stop at Solli is served by both Routes 12 and 13 as Route 12 travels along Drammensveien for about a block at this point.

From Solli to Nationaltheatret, the line runs in a median right of way with one stop at Slottsparken just after Route 19 joins the right of way.

Northwestern line (Routes 17 and 18)

The trip on the northwestern line from Rikshospitalet to Holbergs plass in the city centre takes approximately 13 minutes.

Rikshospitalet is a stub-end terminal with near-side cross-overs. As such, it is only served by the double-ended SL95 trams that run on Routes 17 and 18. This part of the trip operates on a right of way that parallels a road. This extension between Rikshospitalet and John Colletts plass was built in 1999. The entire line has platforms that make it fully accessible.

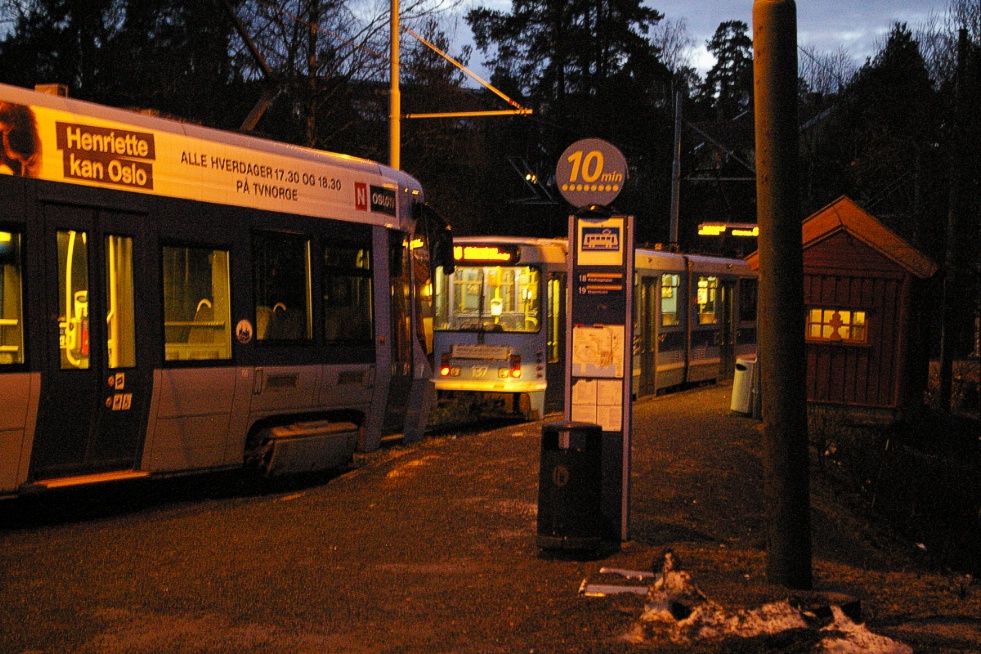

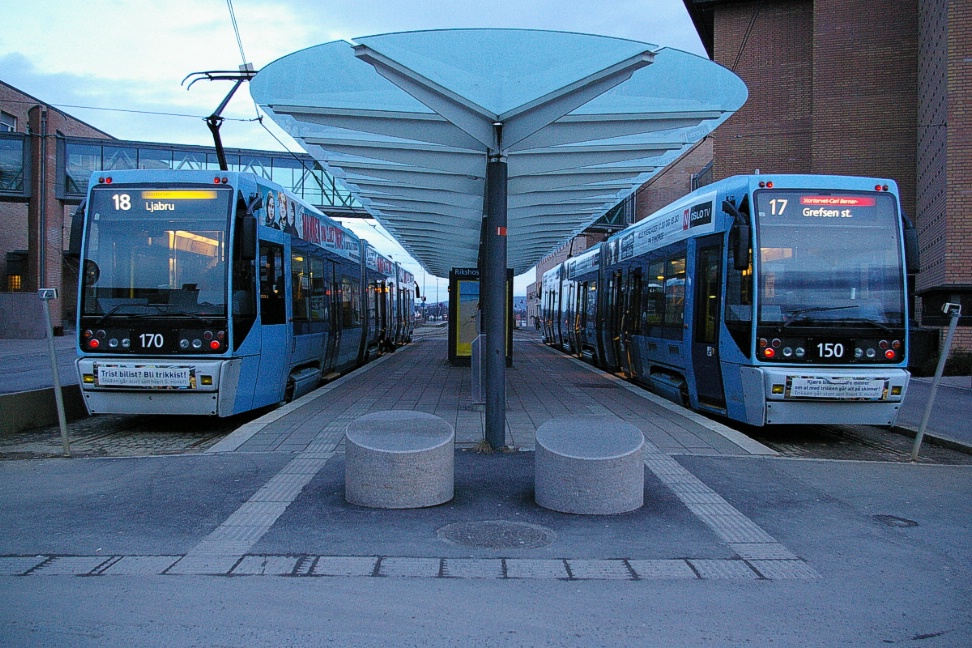

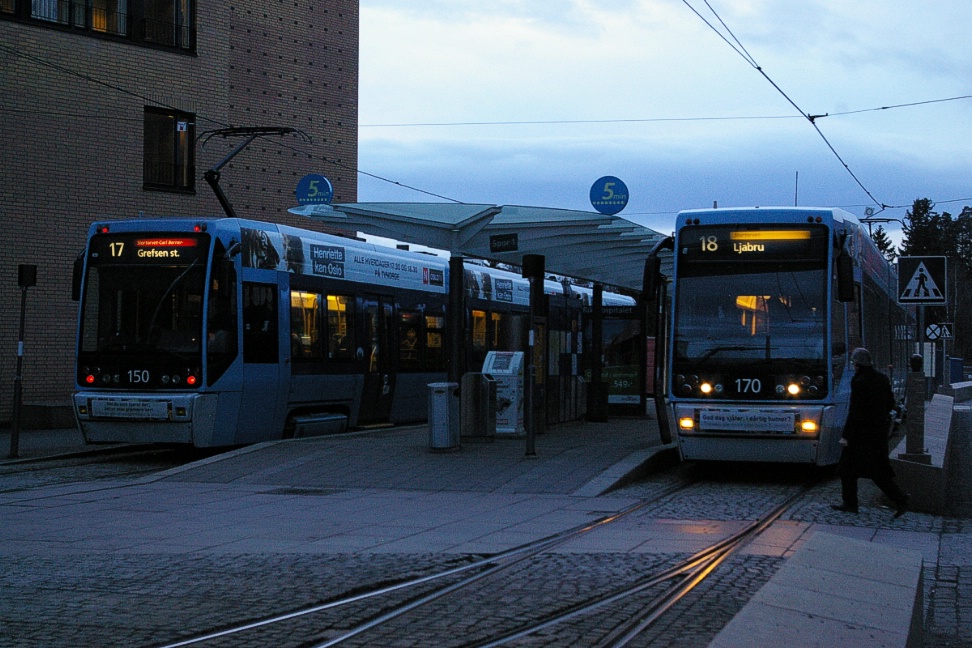

Route 17 has just arrived as Route 18 is ready to depart Rikshospitalet.

Same trams as left photo viewed from the far end of Rikshospitalet.

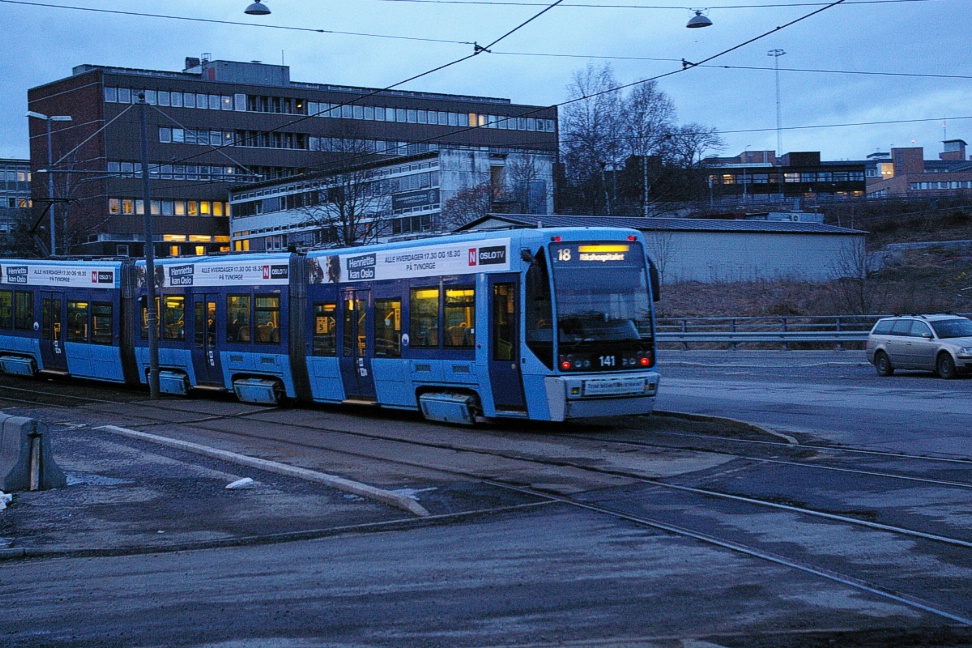

An outbound Route 18 after departing Forskningsparken.

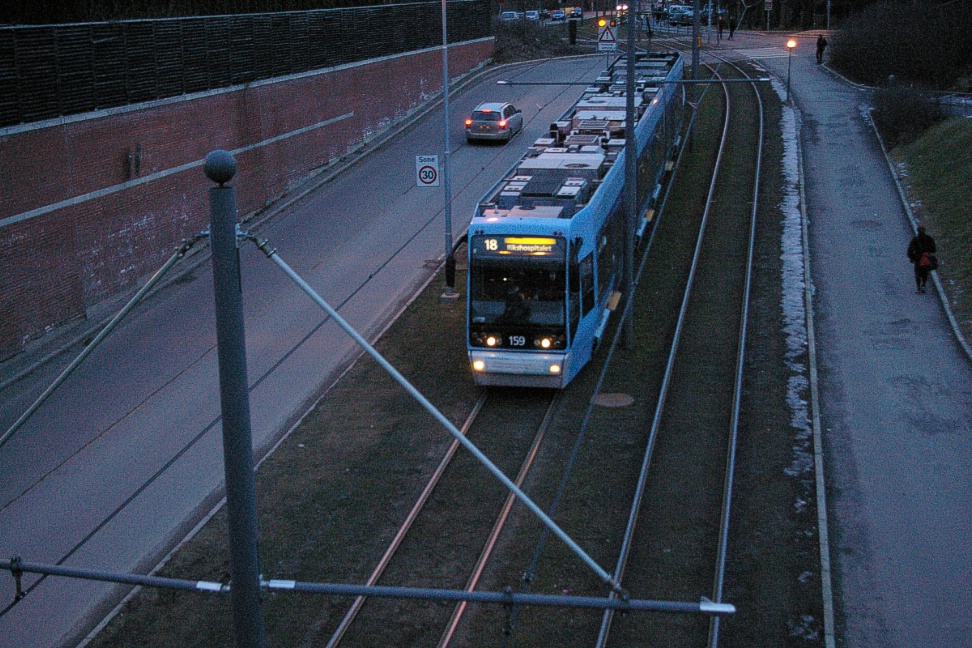

An outbound Route 18 arriving at Forskningsparken, viewed from the T-bane platform above.

The first stop is Gaustadalléen followed by Forskningsparken, which is also a stop on T-bane lines 3, 4, and 5. The T-bane is above ground here and passes over the tram line.

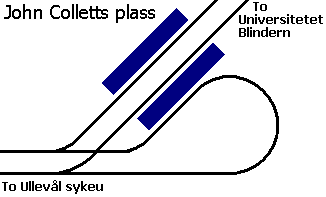

The next two stops are Universitetet Blindern and John Colletts plass where the line curves onto a median right of way on Thereses gate. Prior to the opening of the 1999 extension, John Colletts plass was the end of this line and there is a turn back loop at this location.

An inbound Route 17 tram arriving at John Colletts plass.

Outbound Route 18 at John Colletts plass. Photo was taken from across the street and the track in the foreground is heading into the turn back loop.

The median right of way continues past Ullevål sykeus to Adamstuen, where the line enters mixed traffic. There is a turnback loop at Adamstuen used only for short turns. All stops into the city centre are fully accessible, either by having the tracks positioned at curbside, or with sidewalk/curb "bump-outs".

Between Dalsbergstien and Holbergs plass, each direction travels on separate one-way streets which is the reason for single-direction stops along this part of the line.

Northeastern line (Routes 11 and 12)

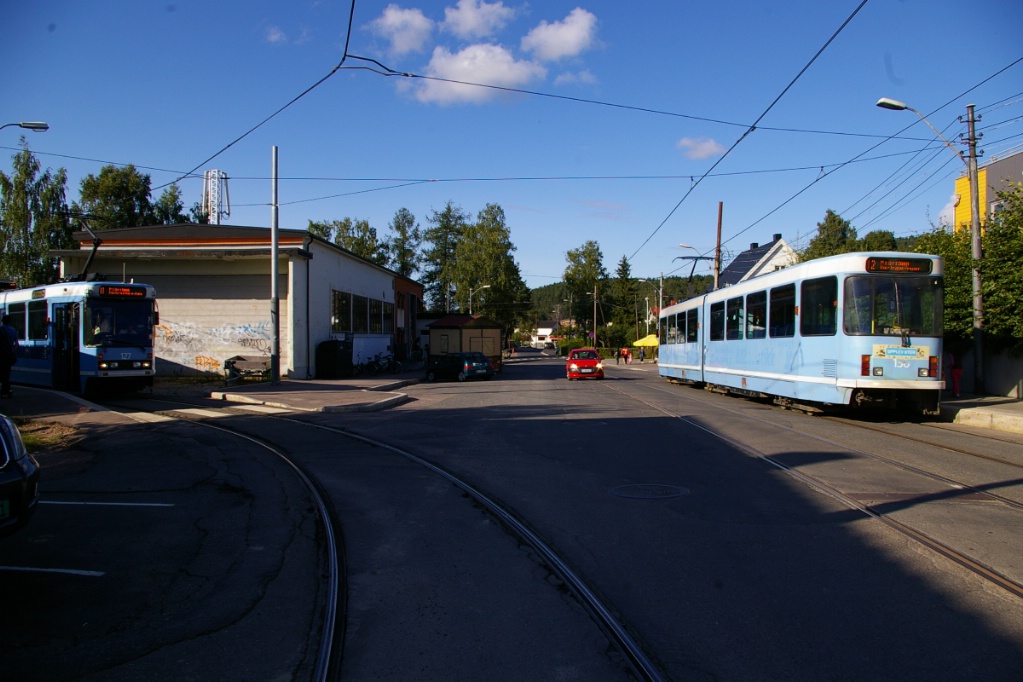

A Route 11 awaits departure on the left at Kjelsås as a Route 12 tram has just arrived and has let off its passengers on the right.

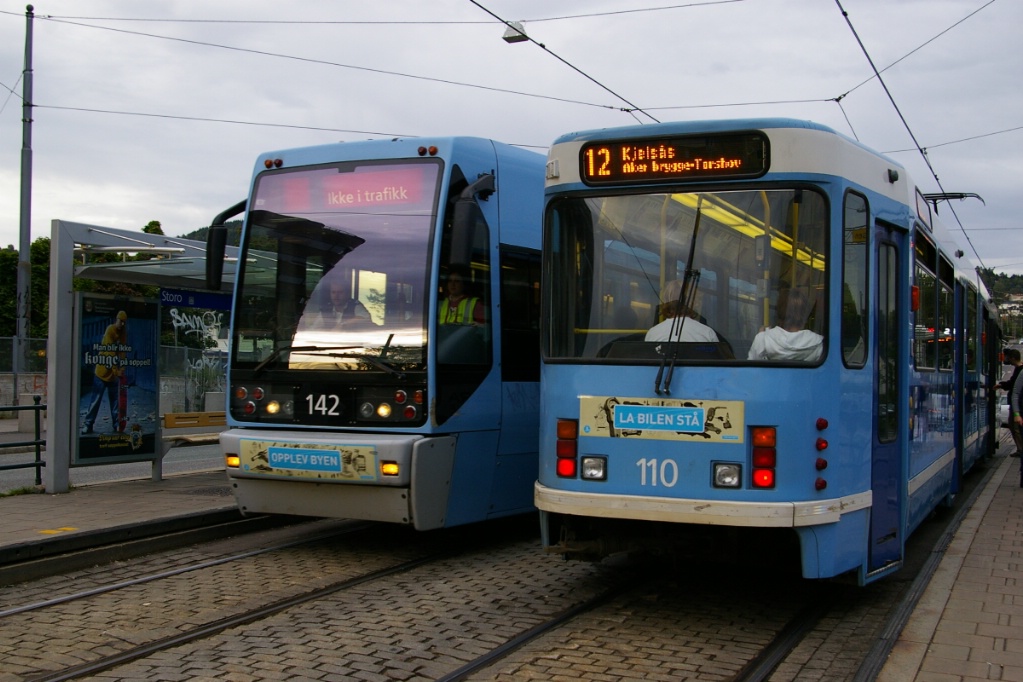

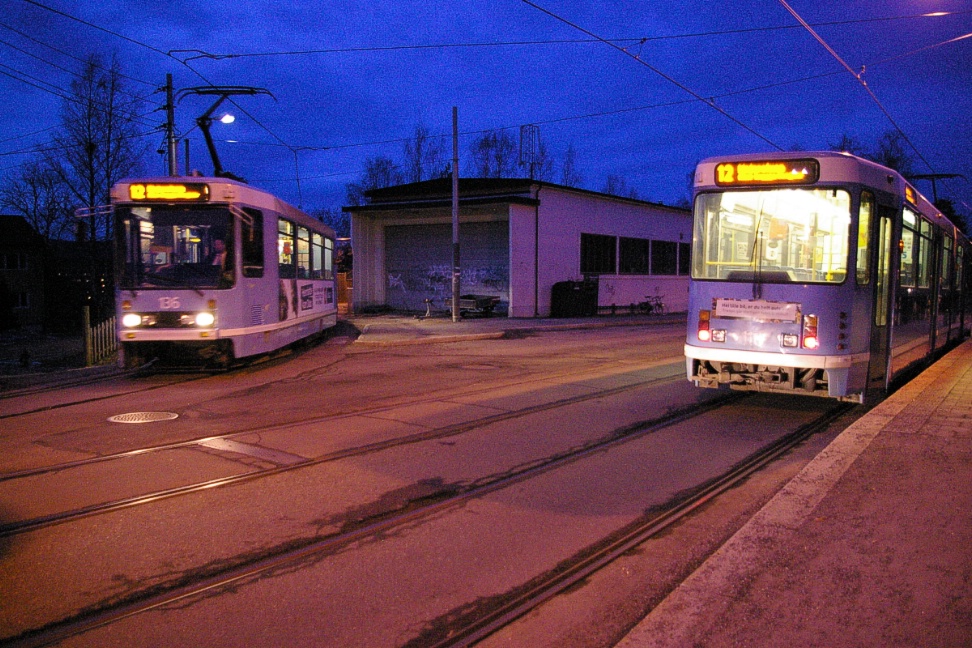

In this photo, a Route 12 tram is being short-turned at Disen - passengers are transferring to a following tram on street to continue to Kjelsås.

The trip on the northeastern line from Kjelsås to Jernbane-torget in the city centre takes approximately 24 minutes.

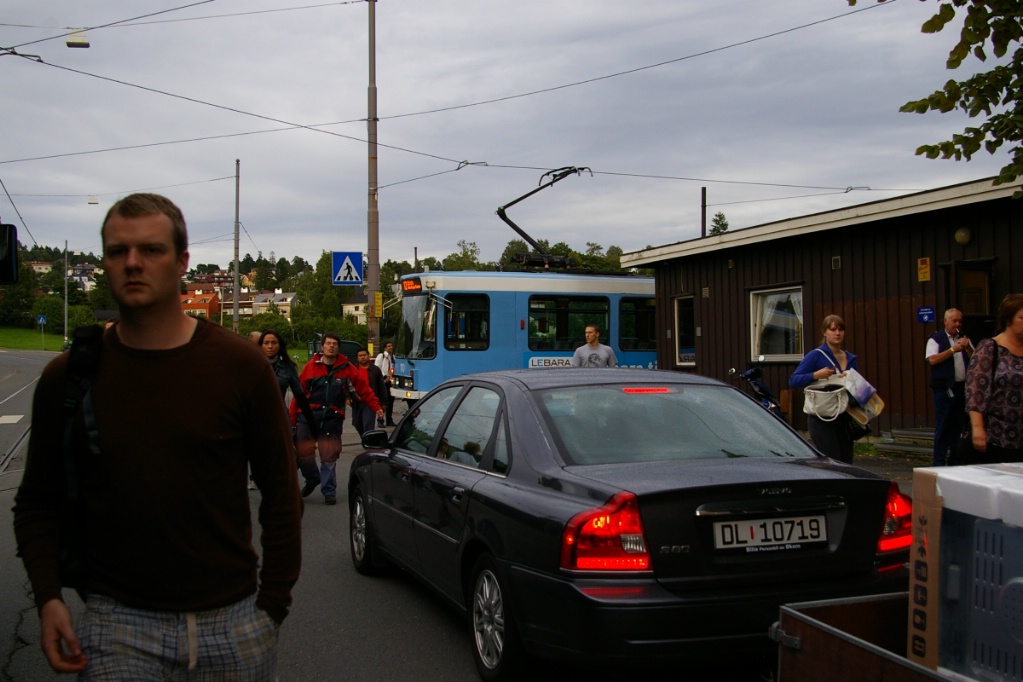

Trams arriving at Kjelsås let off their passengers on the street before entering the loop to pick up inbound passengers. There is a passing track to the left of the tram on the street.

From Kjelsås to Storo, the line operates on a four-lane road in mixed traffic. Stops between Kjelsås and Disen (Kjelsåsalleen, Grefsen stadion, Grefsenplatået, Glads vei, and Sanatoriet) are staggered as the curb lane disappears due to a sidewalk bump-out for the stop.

These photos at Grefsen stadion show how a sidewalk bump-out eliminates the curb lane on the road. Left photo shows the outbound stop south of the intersection and right photo shows inbound stop on the north side.

At Disen, there is a loop for trams to turn back from the south, and this stop is the north end of Route 11 mid-day weekdays and Saturdays, as well as after 10 pm on Saturdays and Sundays. From November 2003 until November 2005, all trams turned back at Disen as the line to Kjelsås was closed down due to financial difficulties.

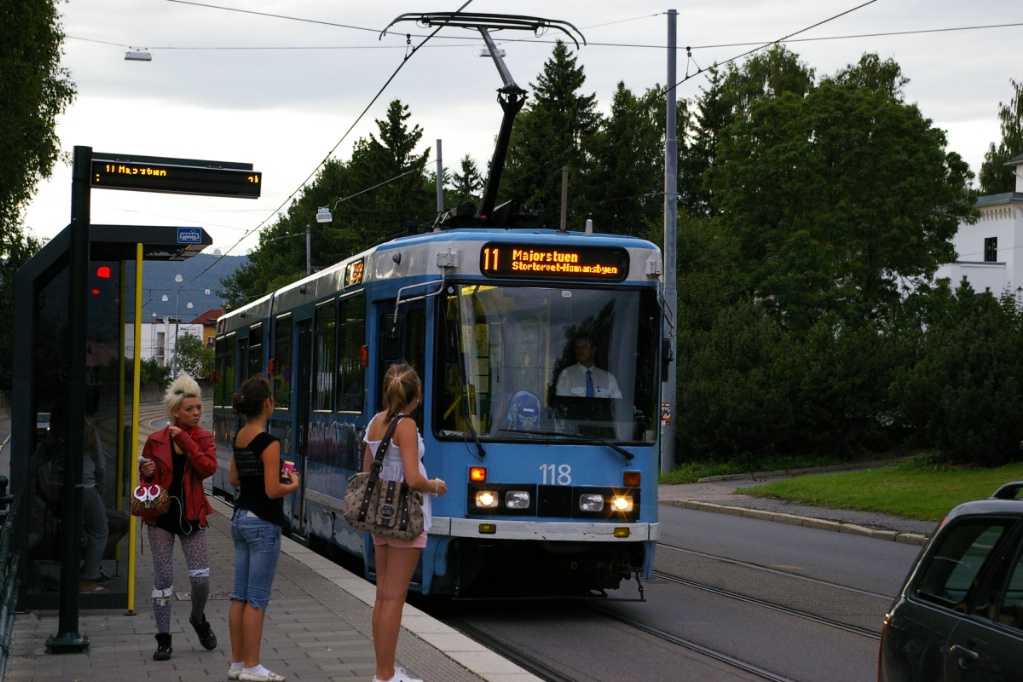

Route 11 to Majorstuen at Storo.

Route 12 to Kjelsås at Storo.

At Storo, Route 13 (left) joins with Routes 11 and 12.

Continuing south, the next stop is Storo, where Route 13 joins Routes 11 and 12. There is also a T-bane station at Storo that is on the north part of the city loop of the T-bane system, served by lines 4, 5, and 6.

From Storo, the line operates in a median on Grefsenveien with the first stop named after that street. At the next stop, Sandaker senter, the street becomes Sandakerveien and the line continues in a median.

Where Sandakerveien becomes Vogts gate, the line is in mixed traffic past the next two stops of Torshov and Biermanns gate. Just south of the stop at Torshov, there was a former branch off of Vogts gate at Bentsebrugata. The connection with the current tracks have been removed, but the tracks on Bentsebrugata are still present (see photo of 1997 map to see this branch).

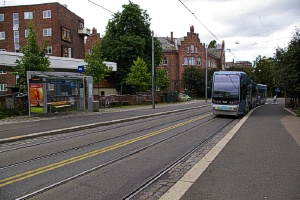

Several images of trams at Birklunden where the stop is on a right of way off street.

Route 13 to Grefsen is stopped at Hausmanns gate.

At Biermanns gate, Vogts gate becomes Toftes gate and curves to a north-south alignment. The line follows this street for a little over 300 metres to Schleppegrells gate where it turns onto its own right of way on the south side of this street to head west for one block. The stop at Birkelunden is on this separate right of way stretch.

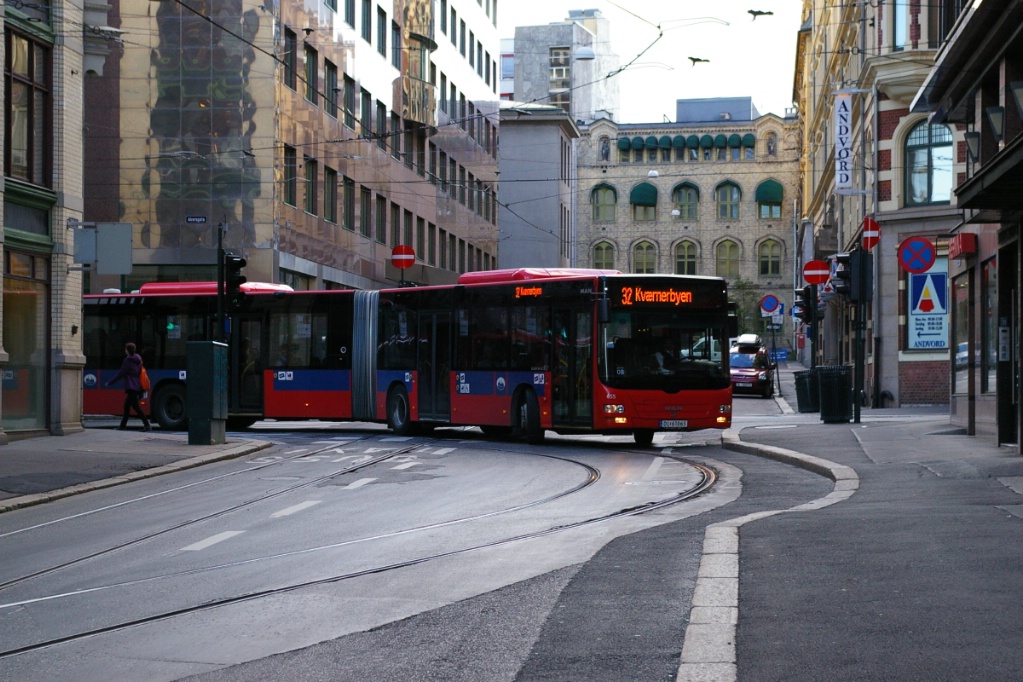

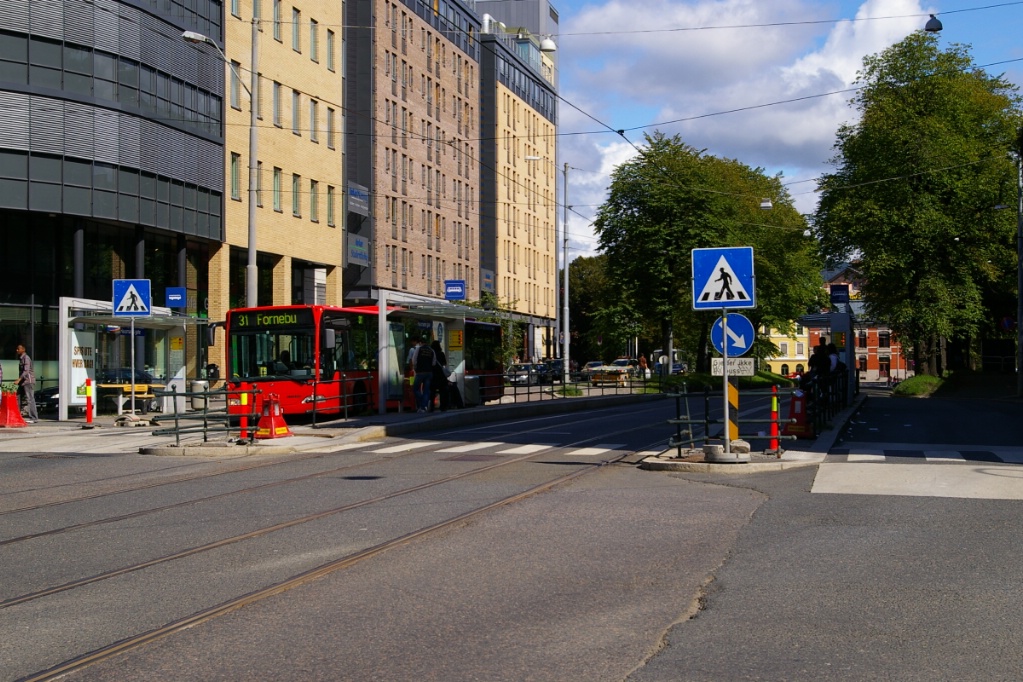

At Hausmanns gate, buses use the traffic lanes.

At the west end of this separate right of way, the line turns south again on Thorvald Meyers gate for the stops of Olaf Ryes plass, Schous plass, and Nybrua. At Nybrua, the line curves to the southwest onto Storgata at a wye intersection with Trondheimsveien, where Route 17 from Grefsen via Sinsen joins. The first stop south of here is Hausmanns gate.

At Brugata, traffic lane must merge with
tram lane afterthe intersection.

The line on this part of Storgata is in mixed traffic, but other traffic is separated into curb lanes at stops.

This poses an interesting arrangement at the next stop of Brugata. Both platforms are on the north side of the intersection, but south of the intersection, the street is only two lanes wide. Southbound traffic must merge with the tracks in the intersection (see photo to the left) while northbound traffic must shift over to the separate lane.

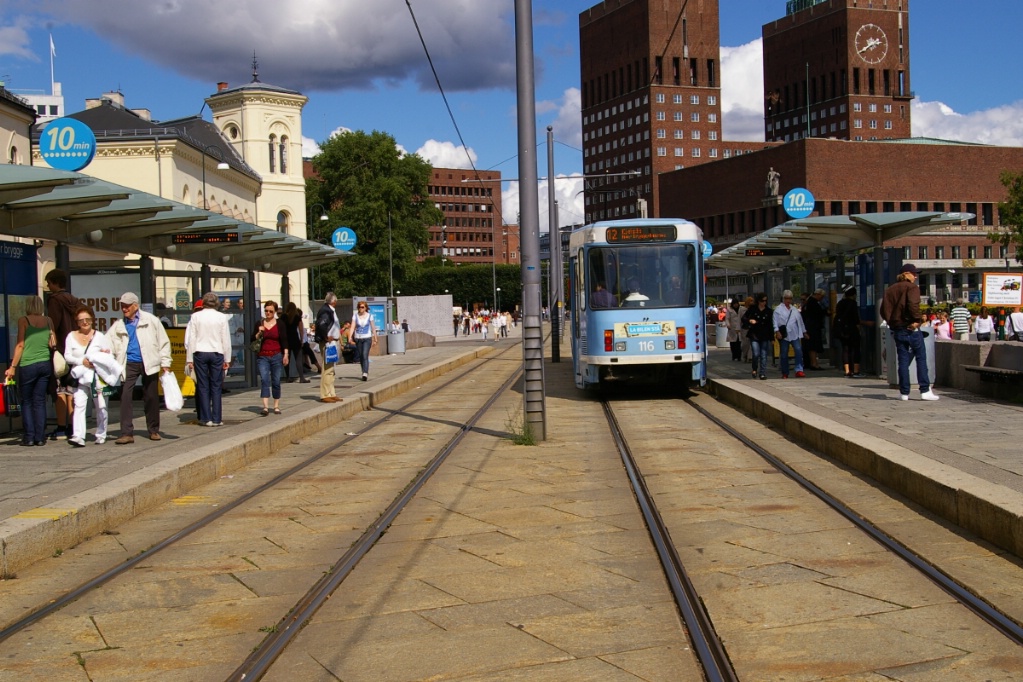

The last stop on this run into the city centre is Jernbane-torget. For Routes 12 and 13, this stop is on Storgata south of the intersection with Nygata. Routes 11 and 17 turn west at Nygata and the Jernbane-torget stop is just west of the intersection.

Route 17

The trip on Route 17 from Jernbane-torget to Grefsen takes about 14 minutes. From Jernbane-torget, Route 17 travels up Storgata to Trondheimsveien (just past the stop at Hausmanns gate) where it branches northeast on Trondheimsveien at an intersection with a double track wye, allowing trams from any of the three approach directions to travel to either of the other two directions.

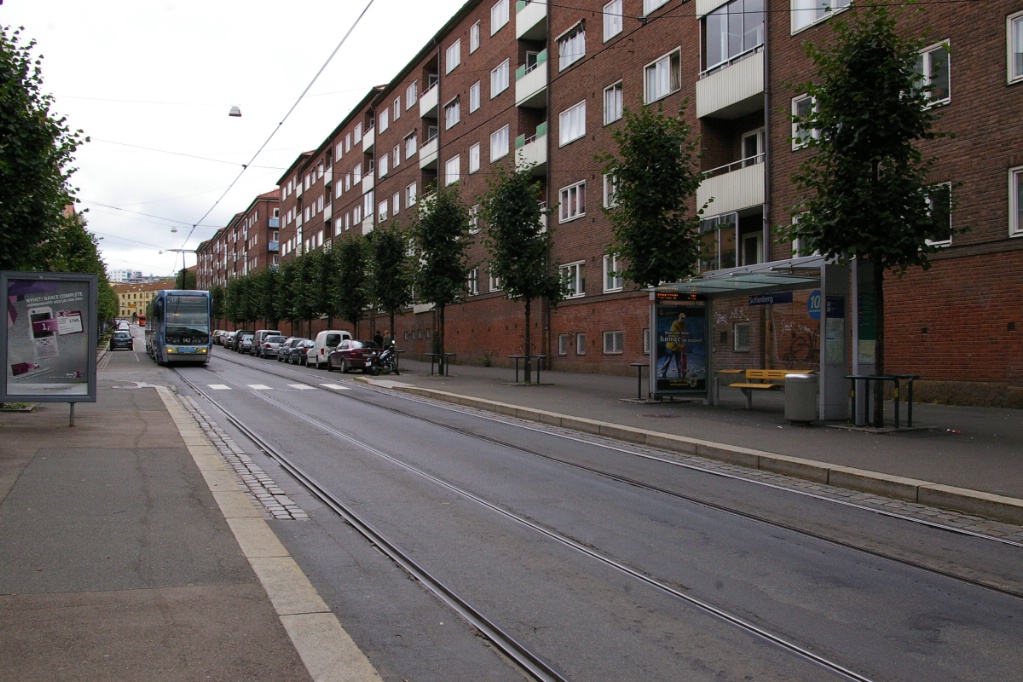

Trondheimsveien is mainly four lanes with parking in curb lanes. "Bump-outs" exist at stops.

A Route 17 to Rikshospitalet departs Lakkegata skole. "Bump-outs" make the road two lanes wide here.

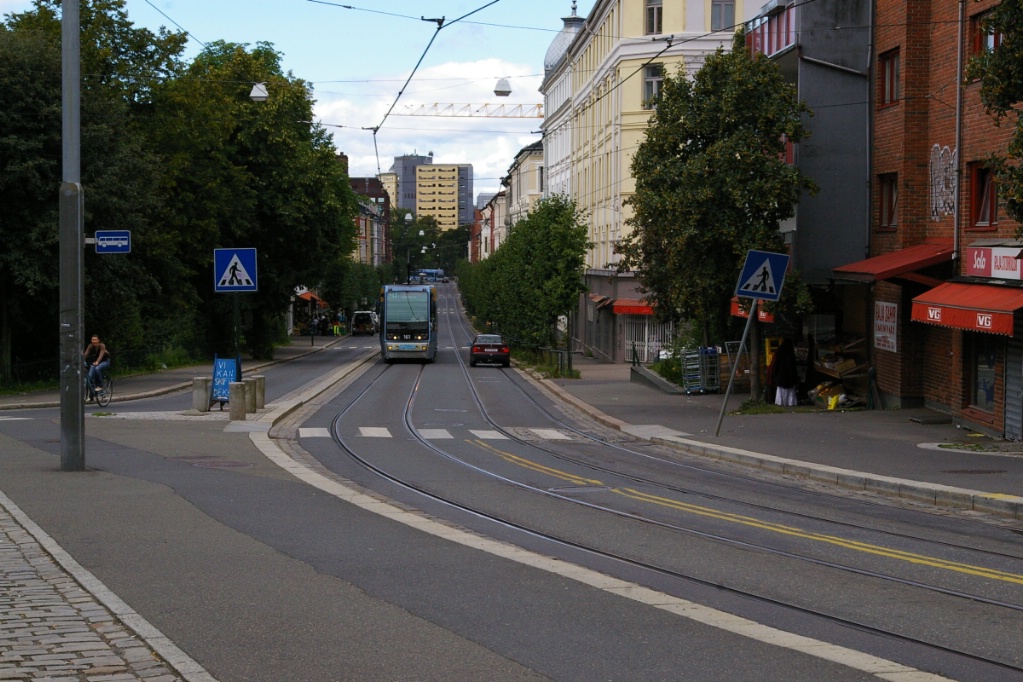

Looking down Trondheimsveien from Lakkegata skole, a Route 17 to Grefsen is approaching.

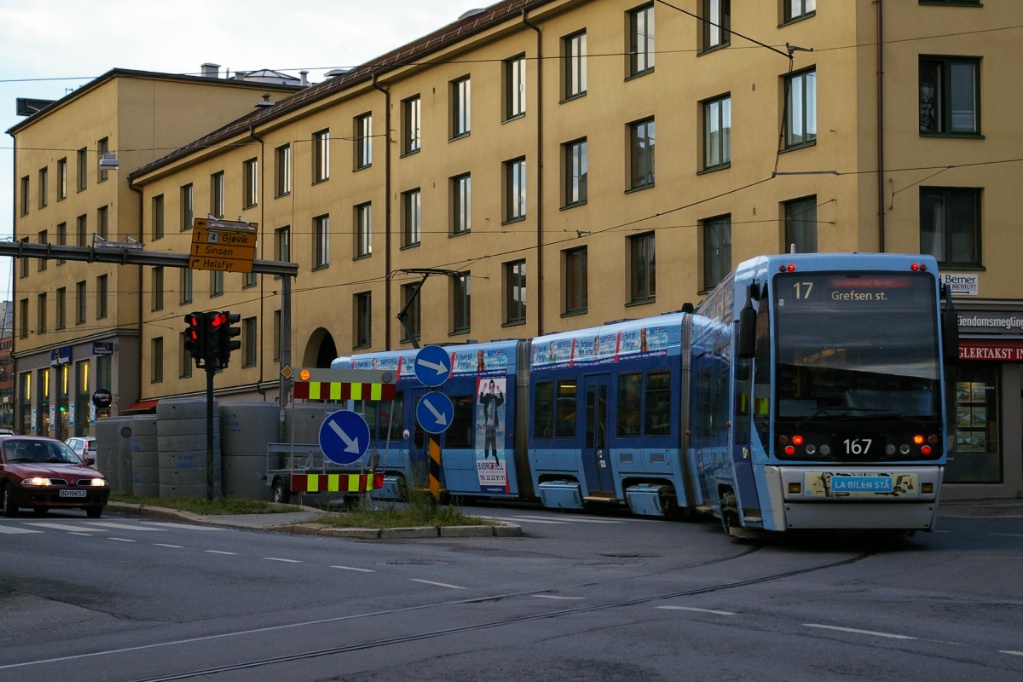

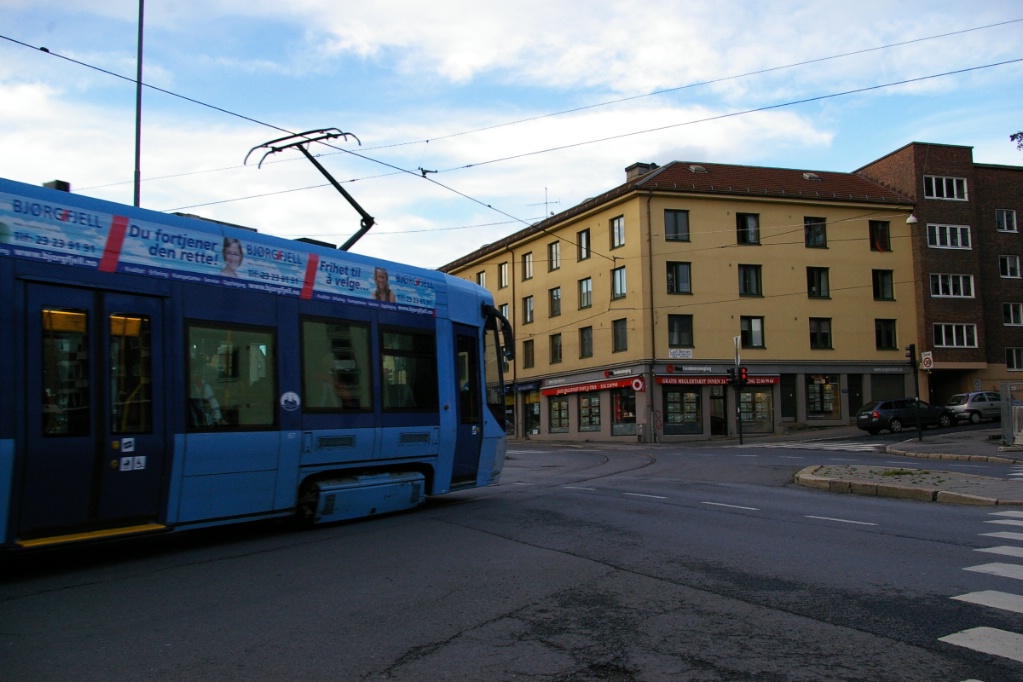

Route 17 after leaving stop at Carl Berners plass - Trondheimsveien jogs to the north for a few blocks.

The distance up Trondheimsveien to Carl Berners plass is just over 2 km with three stops in between: Heimdalsgata, Lakkegata skole, and Sofienberg. On this stretch of Trondheimsvein, much of the road is four lanes wide with parking allowed in the curb lanes. The curb lanes disappear at stops where the sidewalk "bumps out".

Prior to reconstruction between 2008 and 2010, trams ran in the curb lane on both sides of the street between Carl Berners plass and Rosenhoff.

At Carl Berners plass, Trondheimsveien jogs to the north for a couple of blocks. Originally, the tram tracks along this jog were in the curb lanes. In September 2007, a project for improving the visual and traffic flow was passed. The project started April 2008, and finished by autumn 2010. Traffic in this spot used to be controlled by traffic lights but is now rebuilt in to a roundabout, with the tram tracks through its centre. There is a T-bane station at Carl Berners plass served by lines 5 and 6.

Route 17 to Grefsen stasjon as it descends below the road to its own private right of way between Sinsenterrassen and Sinsenkrysset.

The route continues up Trondheimsveien where it enters reserved lanes just before reaching the Sinsenterrasen station in Sinsen. Past that stop, the right of way descends below the level of the road after crossing over the T-bane line near the Sinsen T-bane station.

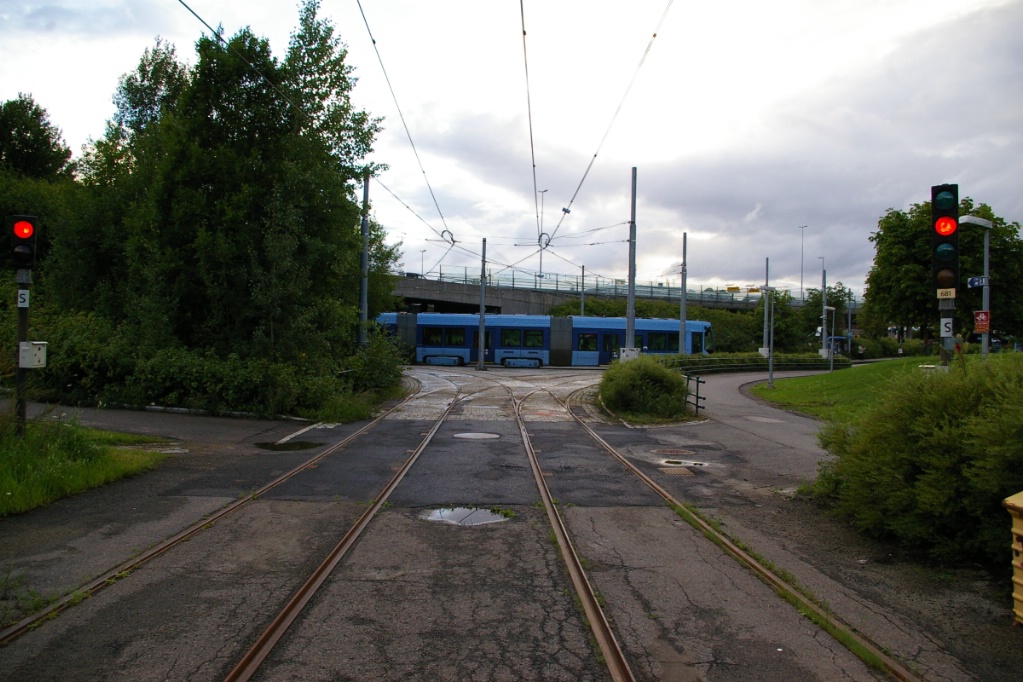

Just south-east of Sinsenkrysset, a double track wye exists.

At this location, Trondheimsveien climbs an overpass where it meets the Ring 3 expressway while the tram line crosses under the inbound (southwestbound) lanes of Trondheimsveien. The tram line continues in a northwest direction for less than 100 metres where it makes a right turn to cross under the expressway followed by a left turn to parallel the northeast side of the expressway. This left turn is part of a wye intersection with its west branch of the intersection only going a short distance, less than 100 metres.

Peviously, Route 17 had it operate via Storo to Sinsenkrysset (see photo of 1997 map). This wye would have been used for turning back that route.

Immediately to the northwest of this curve/intersection is the stop at Sinsenkrysset.

Route 17 approaching Sinsenkrysset coming from Grefsen stasjon on the private right of way.

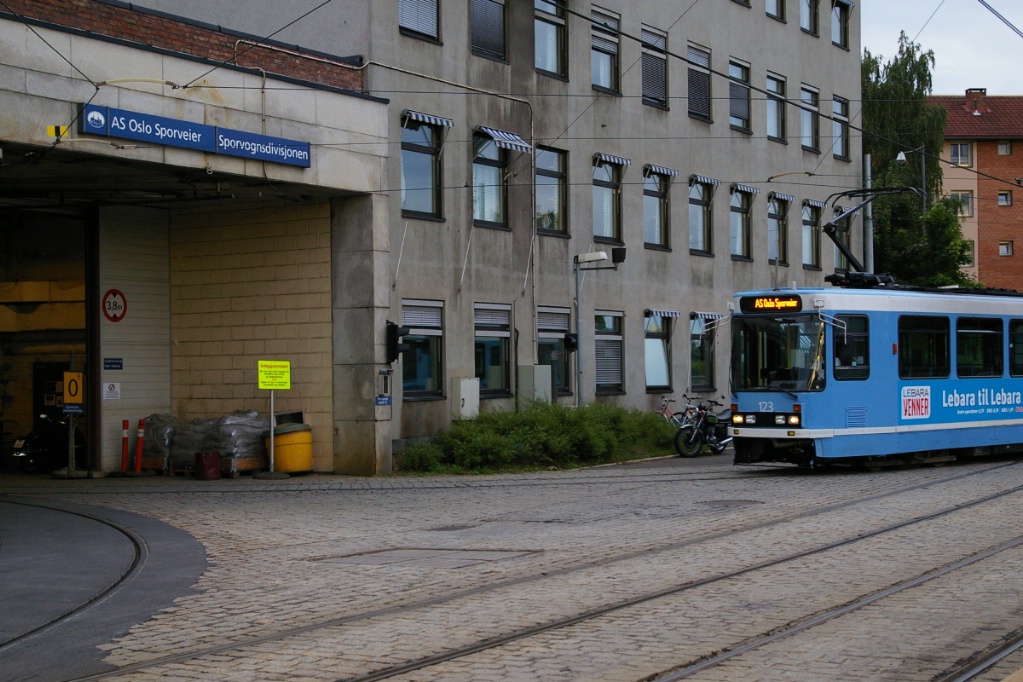

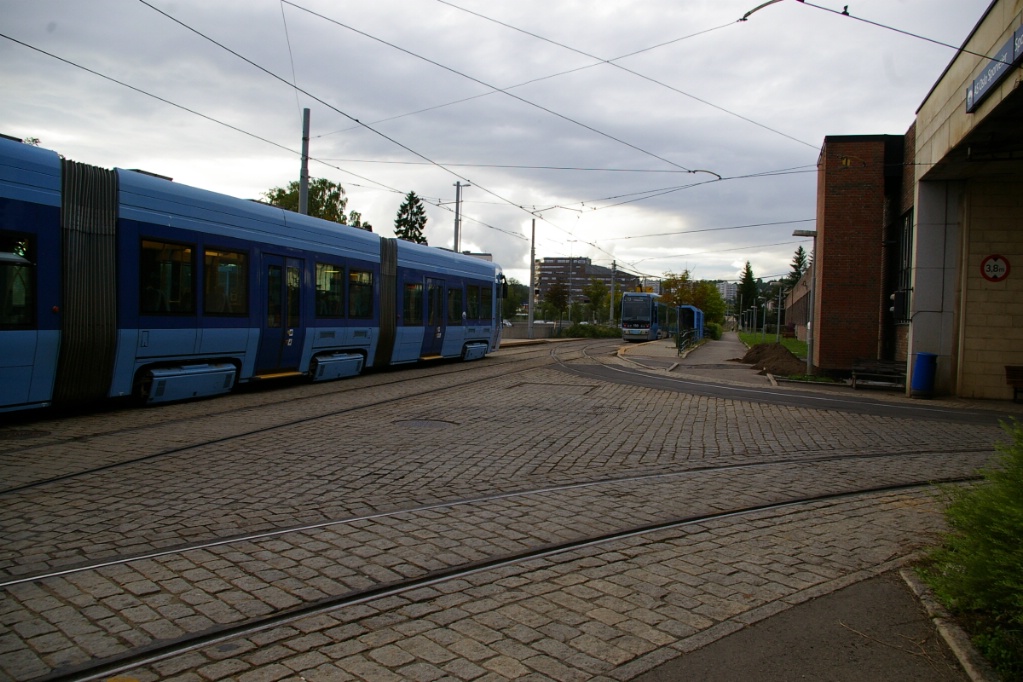

Out of service tram arriving at Sporvognsdivisjonen (carhouse) located at Grefsen stasjon.

At Grefsen, tram on Route 17 is leaving in foreground while a route 13 waits for departure.

Route 13 waiting to depart at Grefsen stasjon. The approaching Route 13 will become a Route 17 for departure.

The route continues for about another 400-500 metres to Grefsen stasjon. Routes 13 and 17 terminate at this stop with through operation. This means that an arriving Route 17 leaves as a Route 13 and vice versa. Route 17 must be operated using SL95 trams because the terminal at Rikshospitalet has no loop. Operation on Route 13 is to Jar, which has both a loop and a crossover.

Southeastern line (Routes 18 and 19)

The trip on the southeastern line from Jernbane-torget to Ljlabru takes approximately 18 minutes.

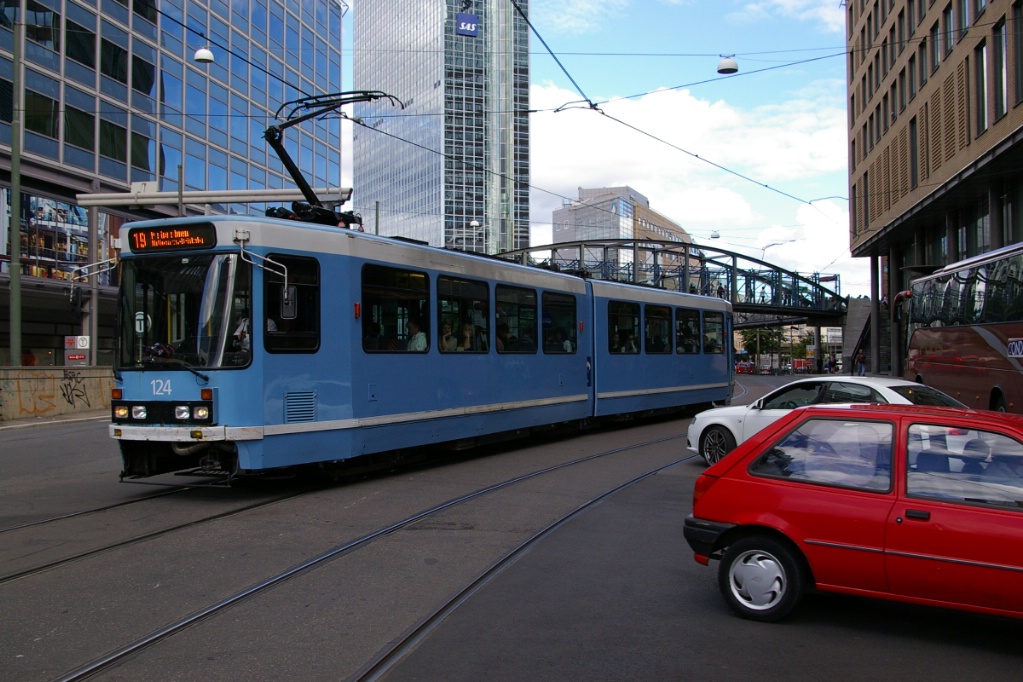

Route 19 to Majorstuen just east of Jernbane-torget stop where the tracks shift to reserved lanes along one side of the street.

Heading east from Jernbane-torget (at Oslo Central Station), the tracks shift so that both are on the south side of the road. The only stop on this part of the line is at the city bus terminal, Bussterminalen Grønland.

Shortly before turning south, the tracks return to mixed traffic. The next three stops, Munkegata, St. Halvards plass, and Oslo Hospital are all in mixed traffic. Half a block south of Oslo Hospital, the tracks pass through the centre of a traffic circle and proceed on a private, side of the road right of way with ballasted tie construction. The longest run between stops is from Oslo Hospital and Sjømannsskolen. It is here that the line begins to climb in altitude.

Outbound Route 19 departing Sjømannsskolen.

Sjømannsskolen is a stop situated at a curve in the road and the line where a side street must cross the line. Platforms for each direction are on either side of this street.

Outbound Route 18 to arrives at Sjømannsskolen.

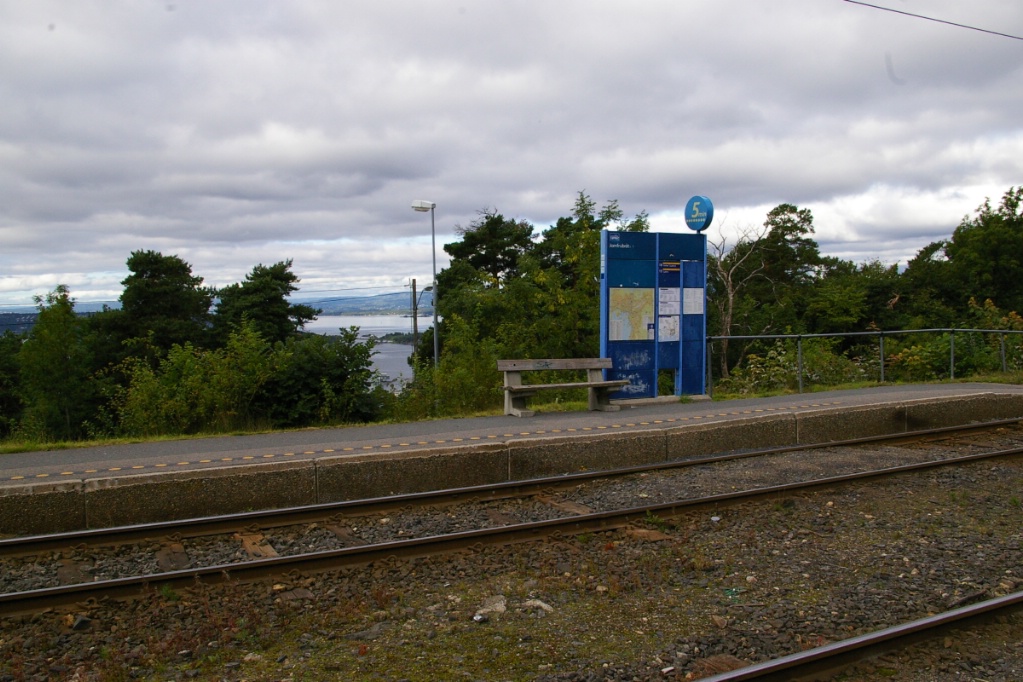

This line is built on the side of the Oslo Fjord and at Sjømannsskolen, the shed for city-bound passengers is built into the side of the hill. (see photo to the left). This shed actually has a "green" roof as the hill's vegetation grows there. There is only a shed for the city-bound platform at Sjømannsskolen. This is common to many of the stops on this line, and very similar to the LRT system in Pittsburgh between Washington Junction and Library.

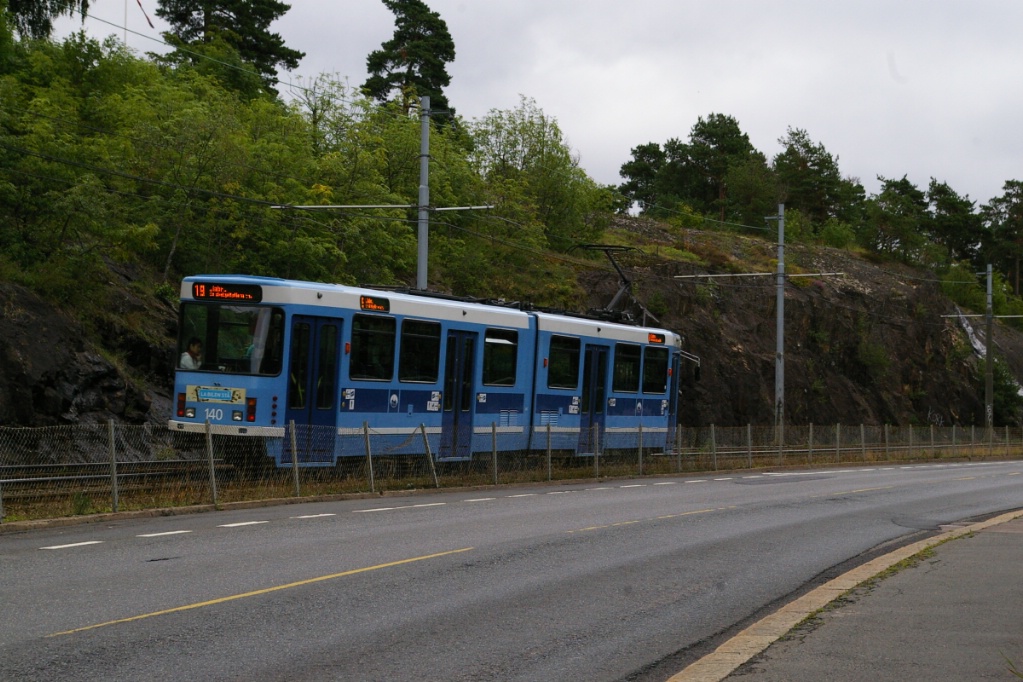

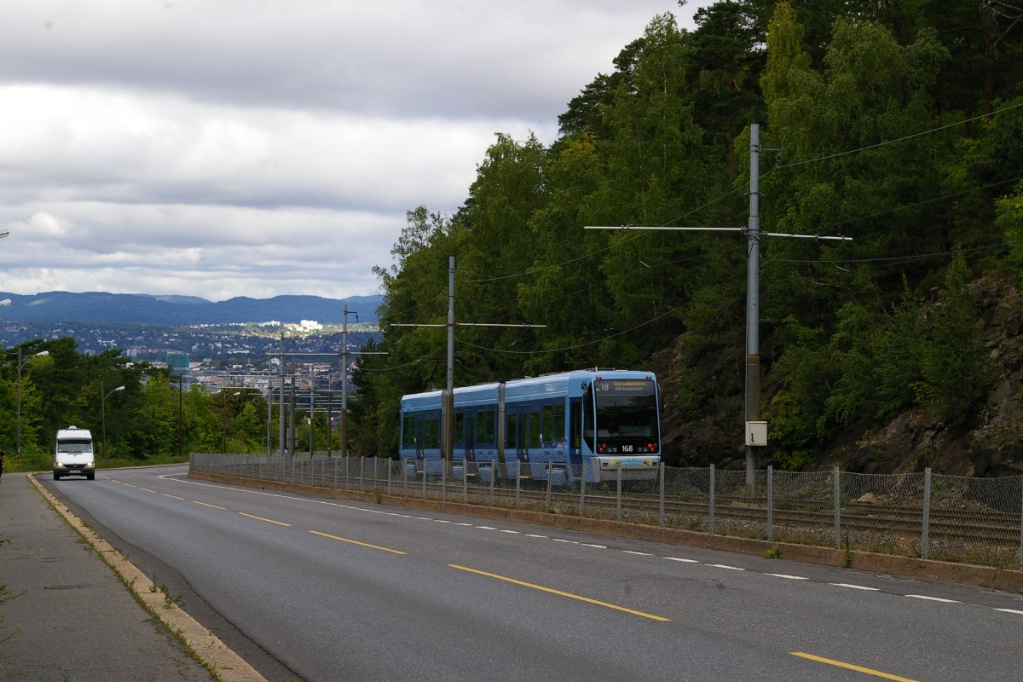

Inbound Route 18 between Jomfrubriåten and Sjømannsskolen.



Outbound Route 19 to between Sjømannsskolen and Jomfrubriåten.

On its way to the next stop, Jomfrubriåten, the line continues to climb the fjord, as can be seen in the photos to the right. At Jomfrubriåten, the line is several metres higher than the road next to it, so the view to the west is rather pleasant. There is a pedestrian crossing at the north end of this stop, that is signalled because the line curves just north of the stop making it difficult to see a southbound tram.

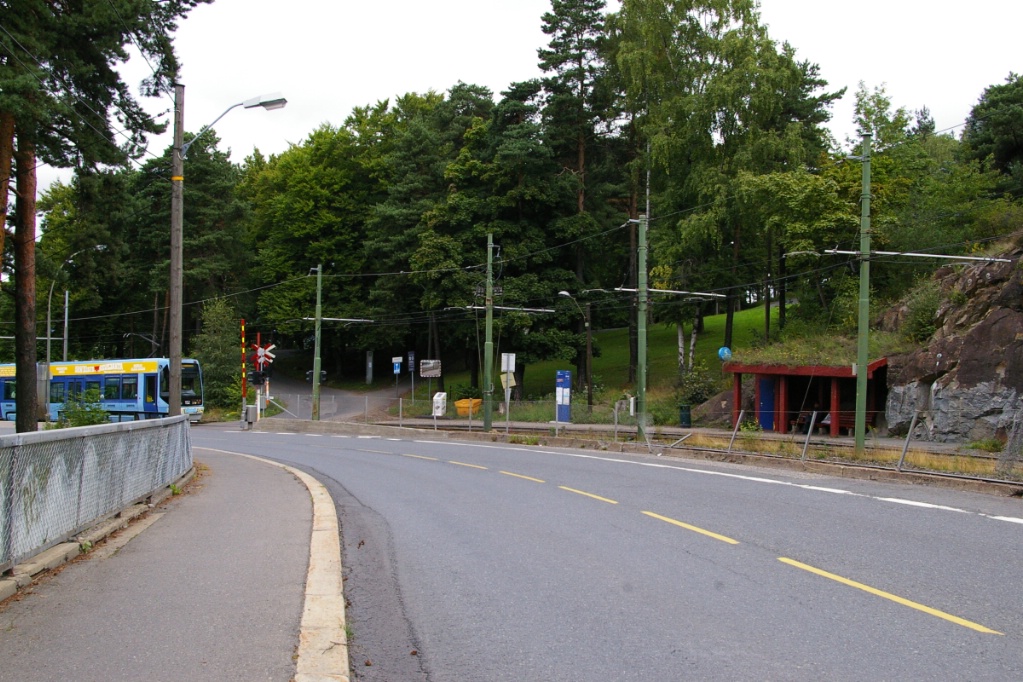

Looking west at Jomfrubriåten.

In the past, there was a branch off this line to the east just south of Jomfrubriåten. This branch had three stops, terminating at Simensbråten. It is not know by the author of this page when this branch was removed from service, but it appears on a 1961 system map.

The next stop on the line is Sportsplassen followed by Holtet. At Holtet, there is turn back loop and crossover track south of the stop. Holtet is the terminus for Route 18 on weekdays from about 9:00 am until about 2:30 pm.

Outbound Route 18 at Holtet.

Outbound Route 19 at Holtet.

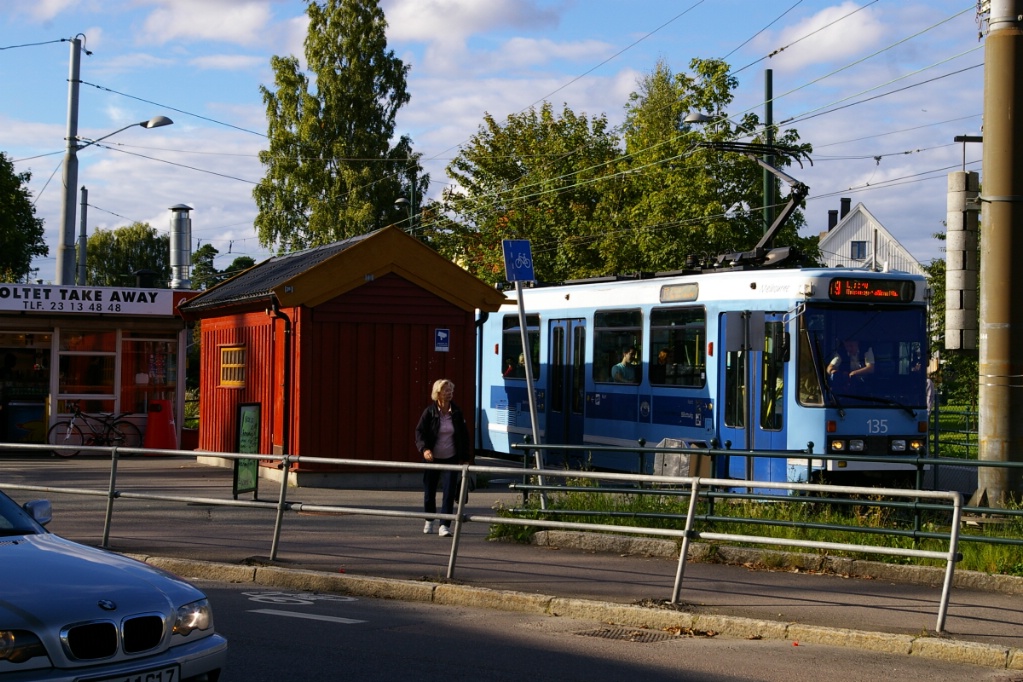

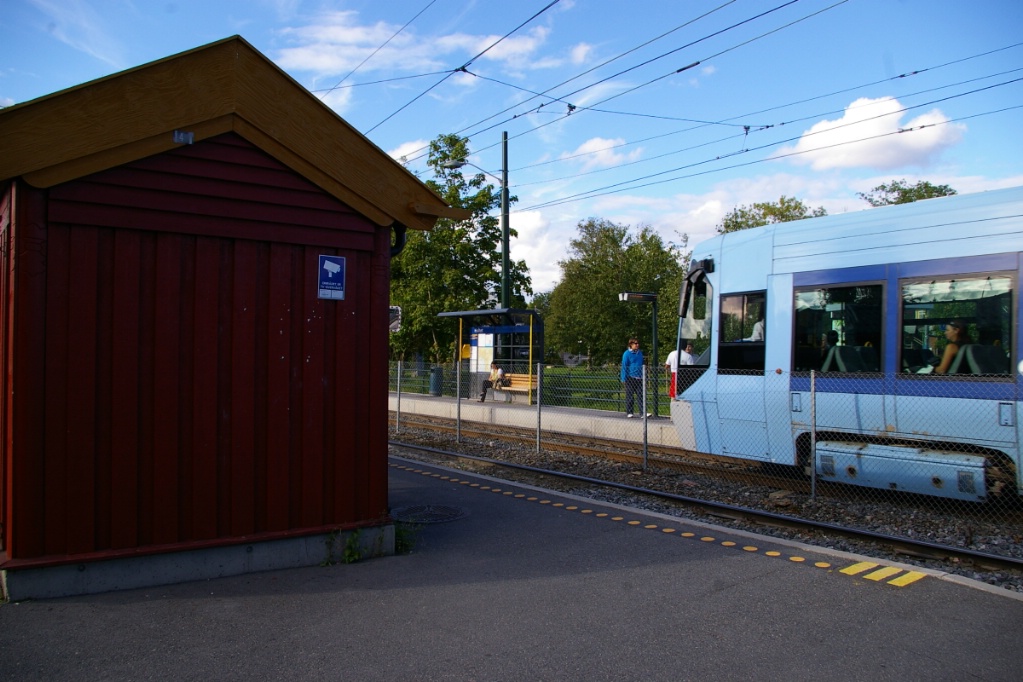

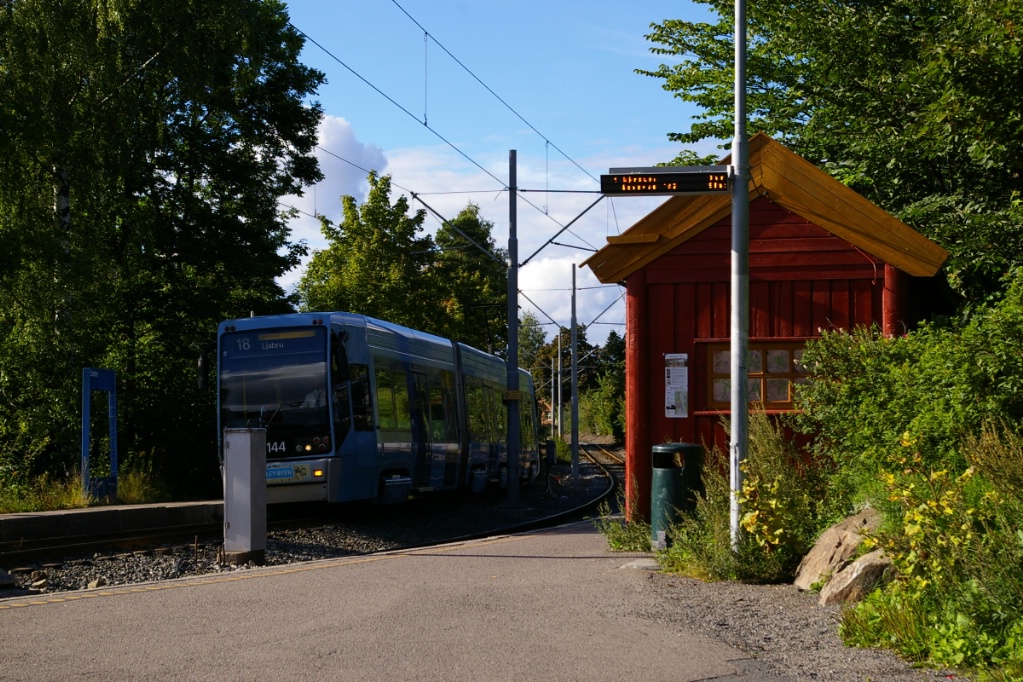

Inbound Route 18 arrives at Holtet. Holtet has the wooden shelter on the outbound side and a glass shelter on the inbound side.

A small, former carhouse exists within the loop at Holtet. Tracks still exist into the four sheds of the building, but only one has overhead wiring. To the south of the loop is a yard for maintenance of way equipment.

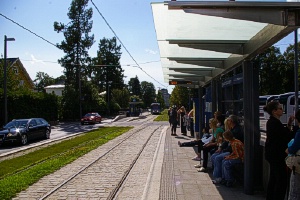

One thing that is different about Holtet is that there is a shelter on both platforms. The usual wood shed that is the mainstay of this line is on the outbound (southbound) side, while the city-bound platform has a glass shelter. The wood shed actually provides more protection from the elements than does the glass shelter.

The next three stops are Sørli, Kasstellet, and Bråten. These stops are similar to many of the stops on this line. Sæter is the next stop on the line and has the same design as most on this line with the wooden shed on the city-bound side.

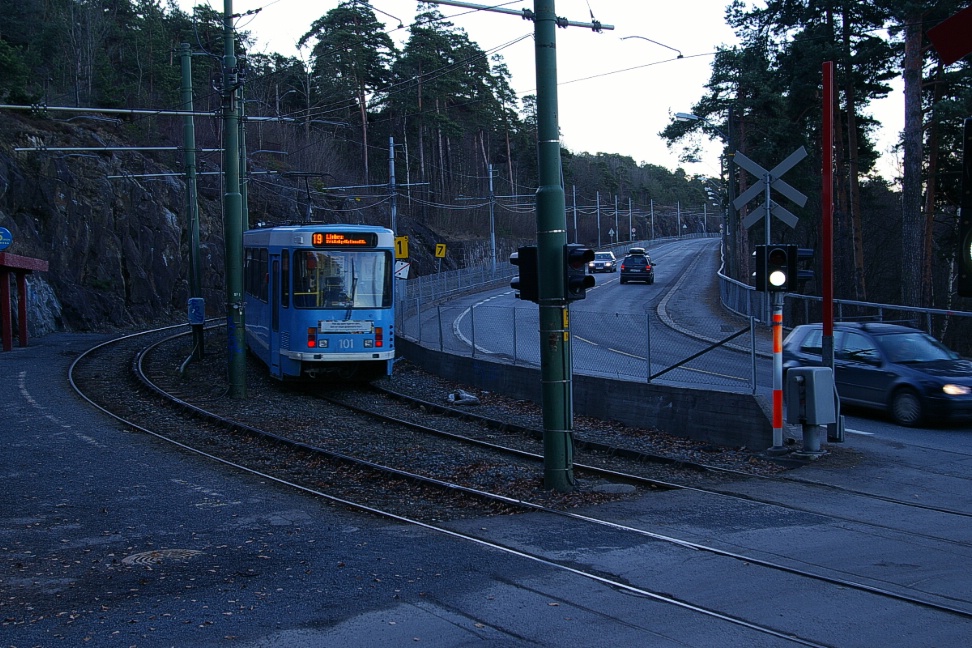

Single-track bridge at south end of Sæter seen with an outbound Route 19 tram on the left and an inbound tram on the right.

However, immediately to the south of the stop is a short single-track overpass crossing a two-lane road. It appears that local properties would be severly effected by the construction of a two-track bridge.

Inbound Route 18 on the single-track bridge at Sæter.

Oddly, the track uses powered switches and signals to control tram movements. It is possible to have this arrangement operate using spring switches at each end and the single-track section is so short that line of sight operation is possible.

Outbound Route 18 approaches Sæter.

After Sæter, it is a short distance to Ljabru where a loop is used to turn all trams back. Route 18 operates with SL95 trams as Rikshospitalet does not have a loop, and route 19 operates with SL79 trams as Majorstuen does not have a crossover track. There is a stub track at Ljabru that can hold a single tram, but must be entered by a reverse movement from the loop.

Route 18 behind Route 19 at Ljabru.

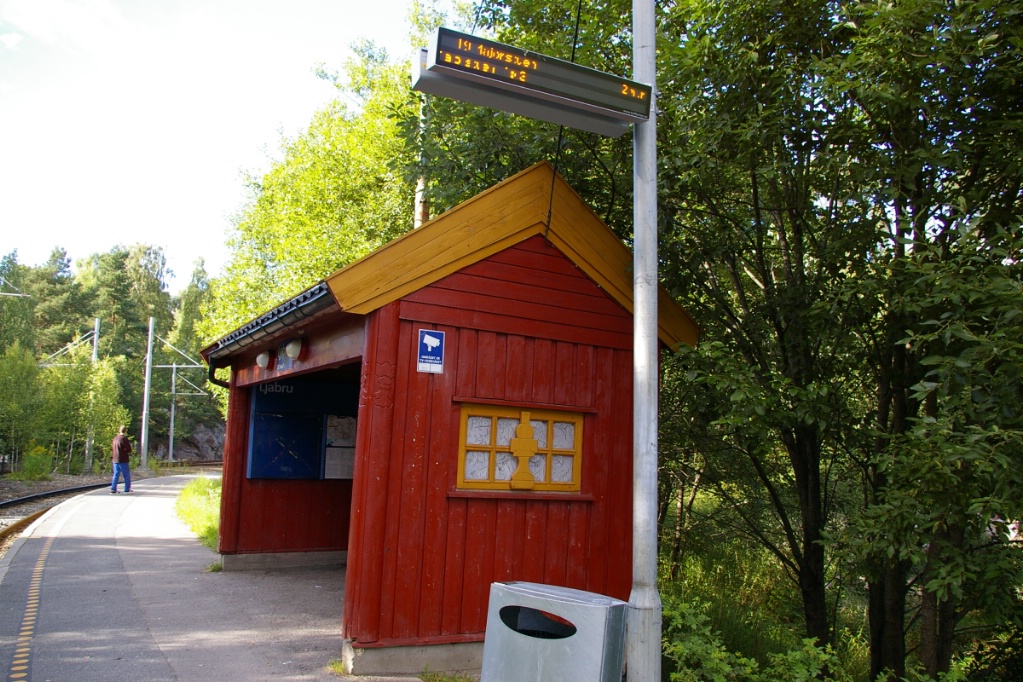

Shed and next arrival display at Ljabru.

Route 19 departing as Route 18 arrives.

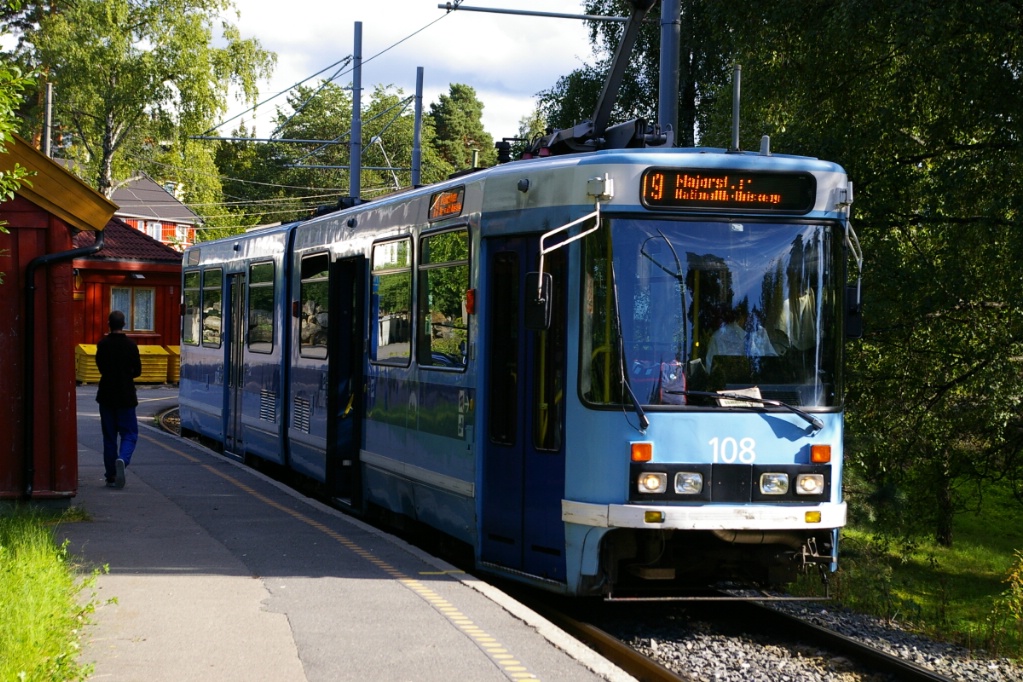

Route 19 ready to departure at Ljabru.

Fares and Fare Collection



This two-zone weekly is from 2008.
The price at that time was Kr.270, but is now Kr.390

Single fares described here are for travel within Oslo city limits (Takstsone Oslo). The only stop on the network, Jar on Route 13, is outside this zone (in Takstsone V02), requiring a two-zone fare to travel. Canadian dollar figures are based on the exchange rate in effect when this page was updated.

Fare cards must be validated upon first boarding. Single fares are valid for 60 minutes.

Single fare cards (Enkeltbillett) may be purchased at retailers for Kr.30 (about C$5.25) for a single zone, or Kr.50 (about C$8.75) for two zones. To discourage purchasing single fares on board, their price is higher: Kr.50 for one zone or Kr.70 for two zones (about C$12.25).

There are also passes good for 24-hours, 7-days, 30 days, and 365 days from when they are first validated on board a vehicle. Prices are as follows:

Accessibility

Only the SL95 trams are low floor, and only in their door areas. Many stops on routes using SL95 trams have a platform that is level with the entrance of LRVs. In some cases, trams operate in the curb lane which also provides level boarding. There remain some stops without level boarding.

Other Notes

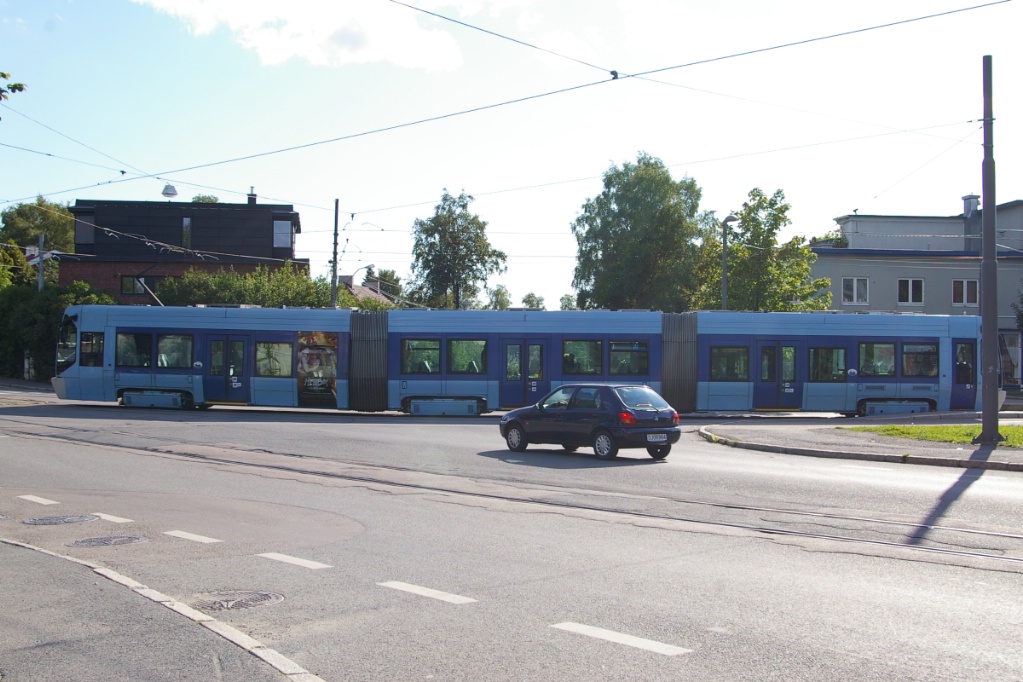

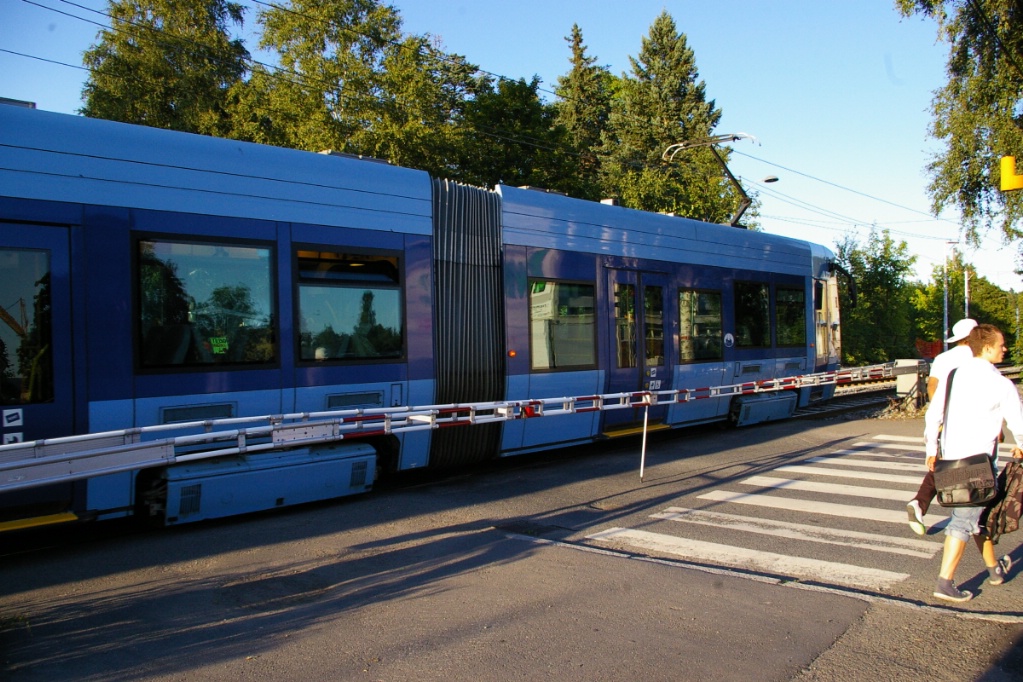

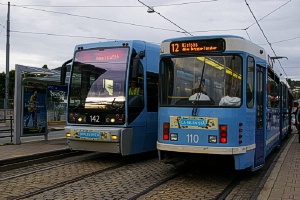

SL95 trams.

SL79 trams.

Several of the SL79 trams are labelled with the name of a city with a tram/streetcar system.

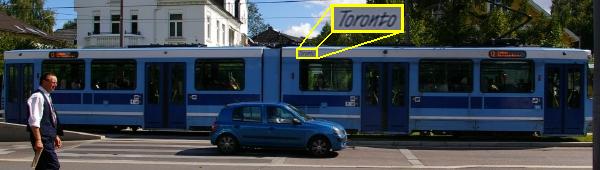

Tram 139 is labelled "Toronto".

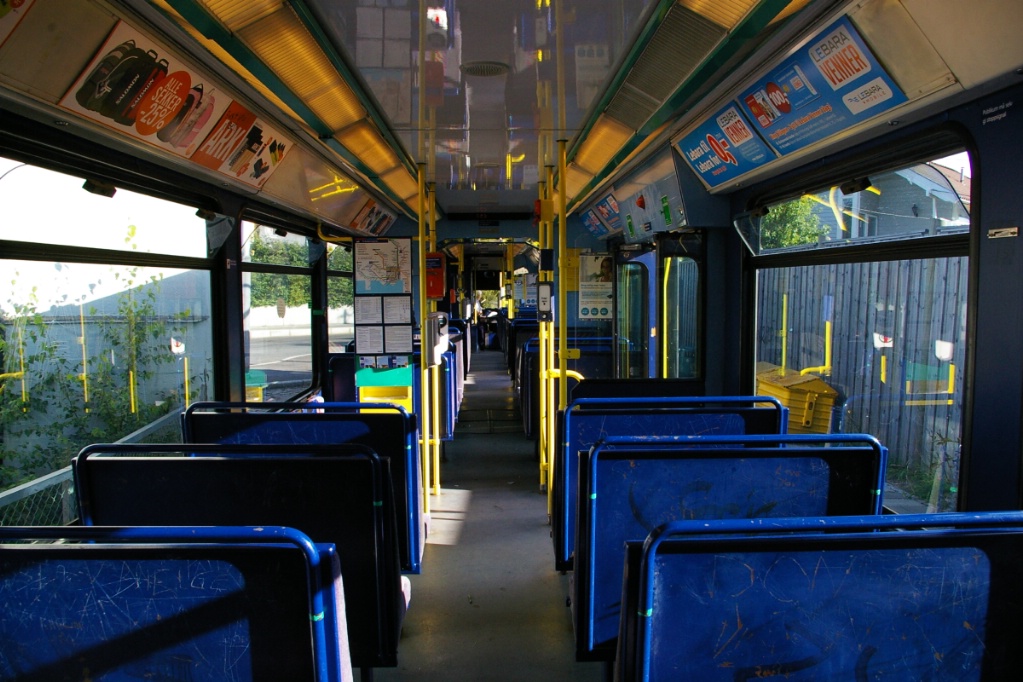

SL79 trams are high floor with steps at the doors.

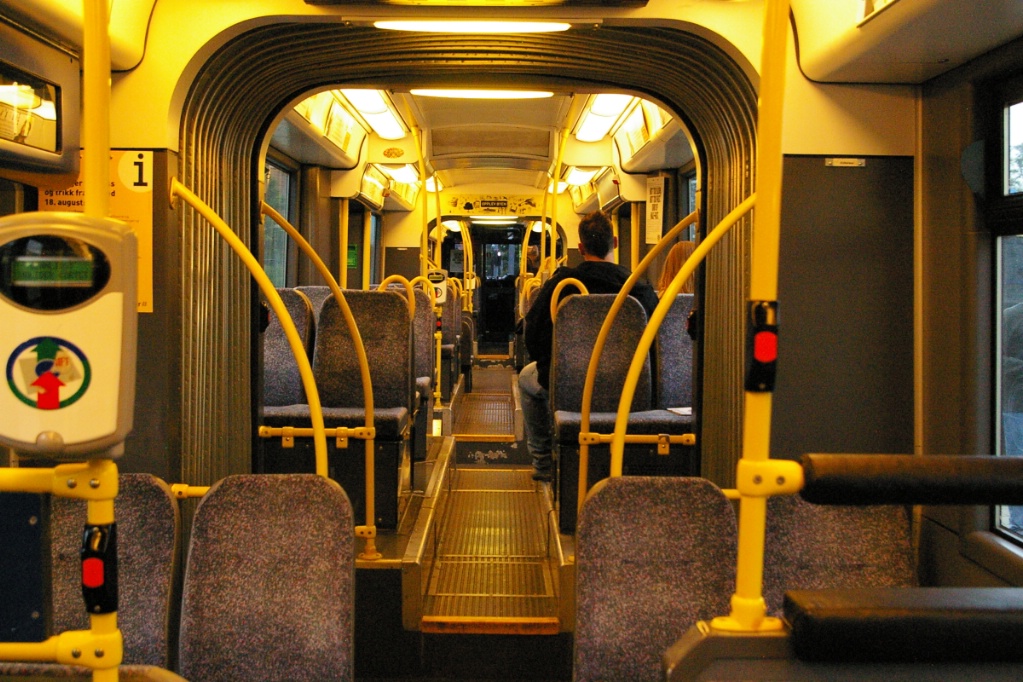

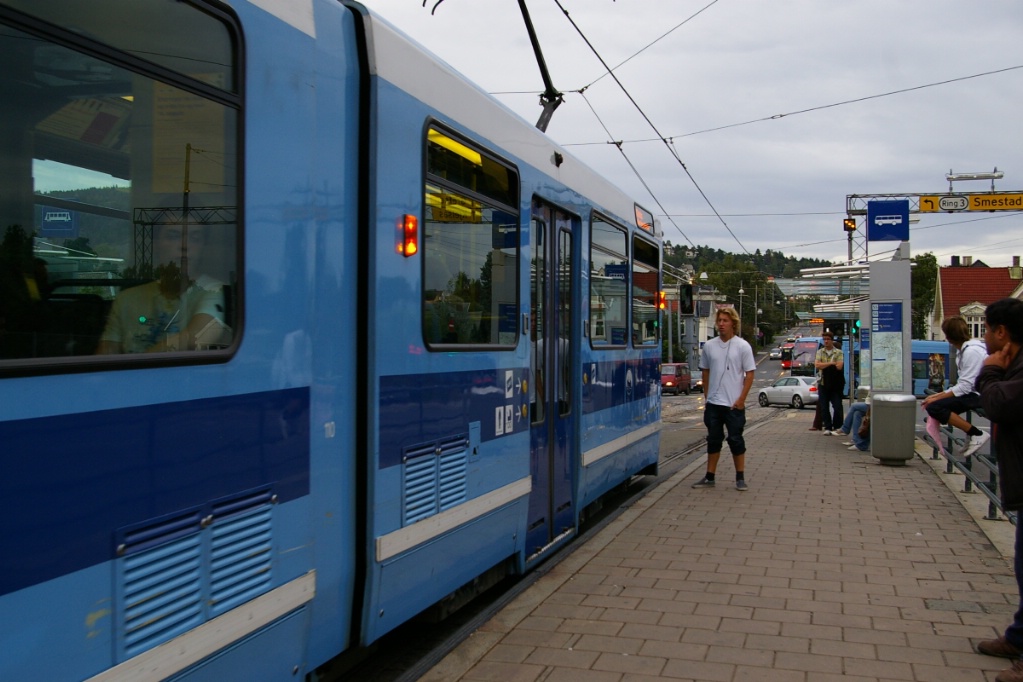

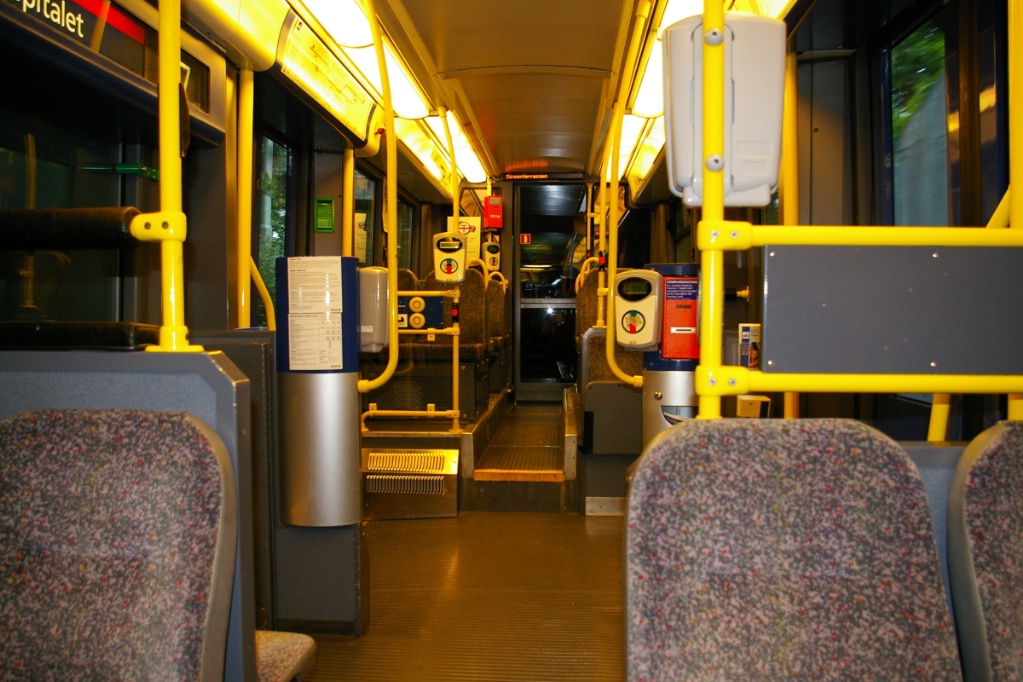

On SL95 trams, all double door areas are low floor; centre doors are opposite each other and only this space is low in the centre section. Other double doors have a wheel chair space opposite them, with the left-side door closest to the end of the car. Floor is low floor from this point to the articulation.

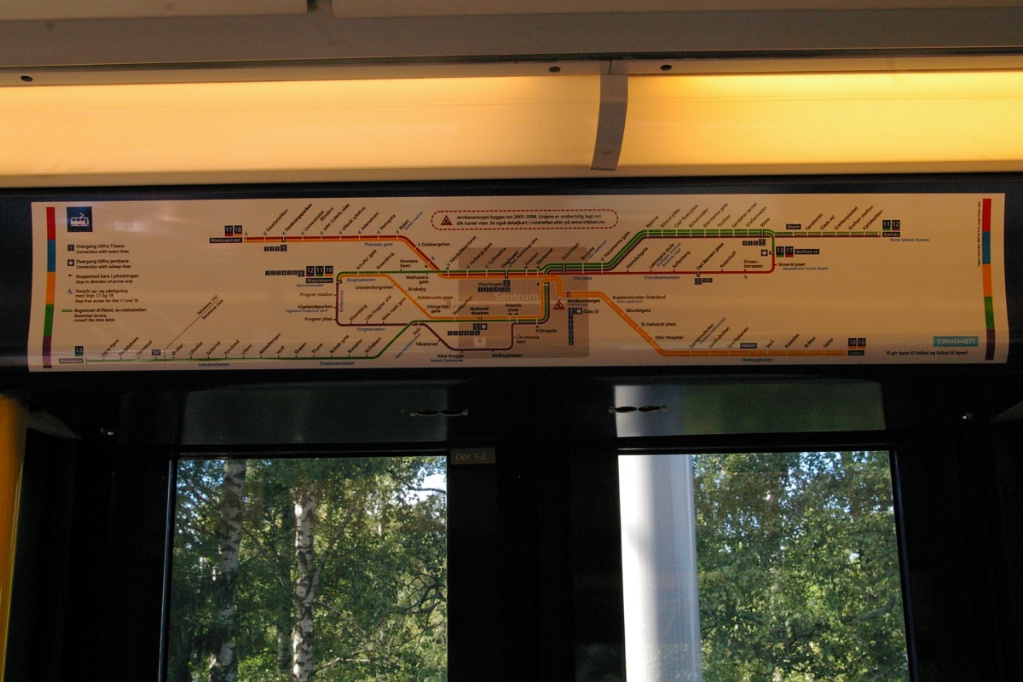

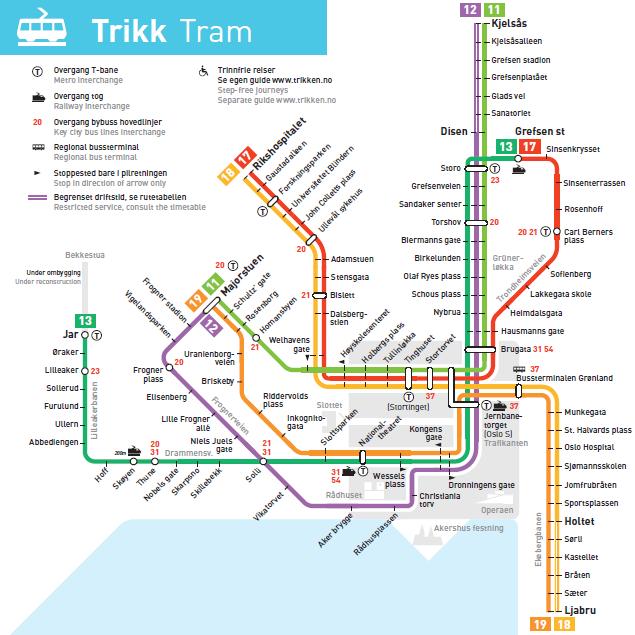

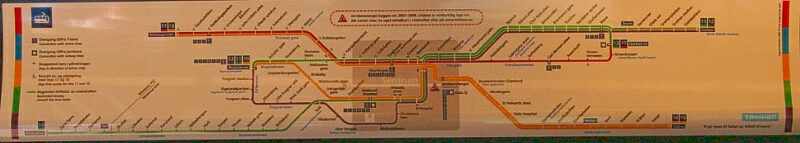

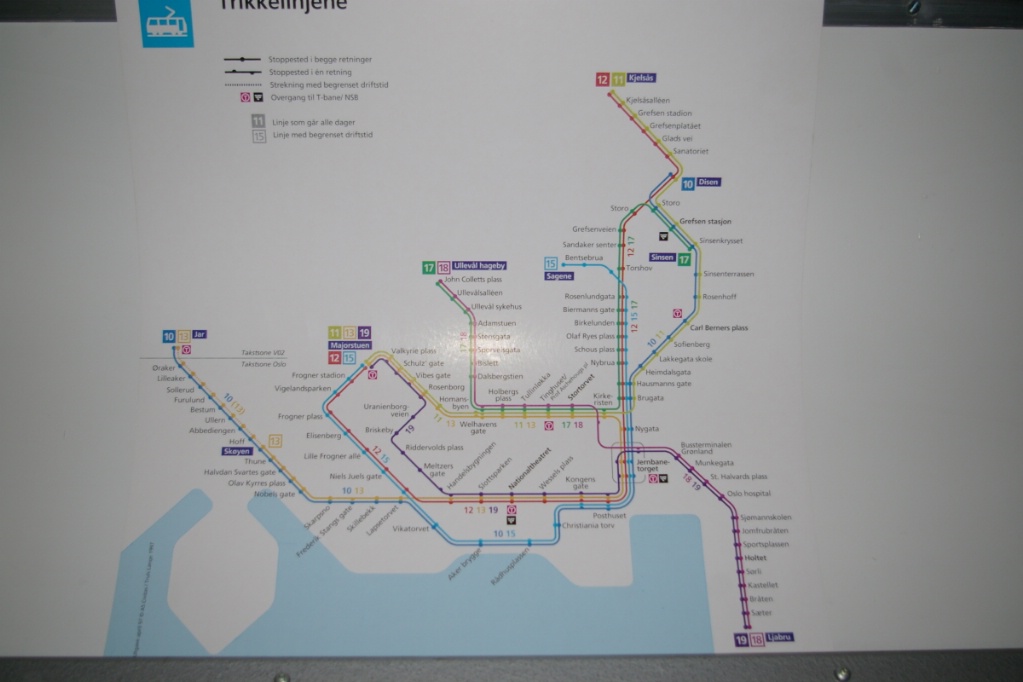

System map image for on-board display.

Current and Planned Expansion

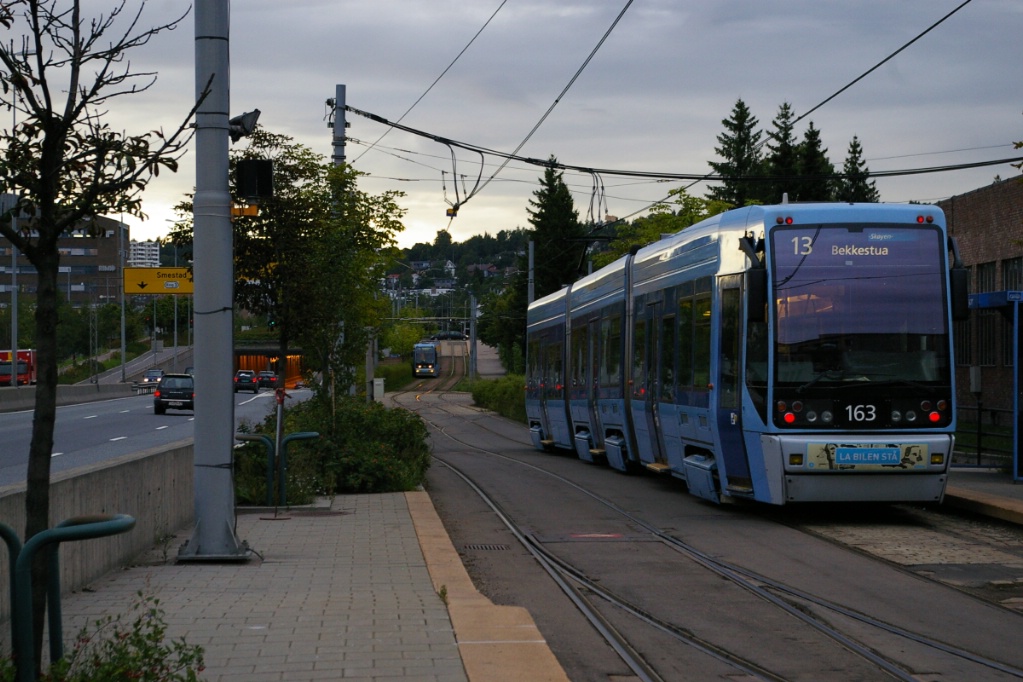

Outbound route 13 going to turn back at Bekkestua as an inbound is coming into service.

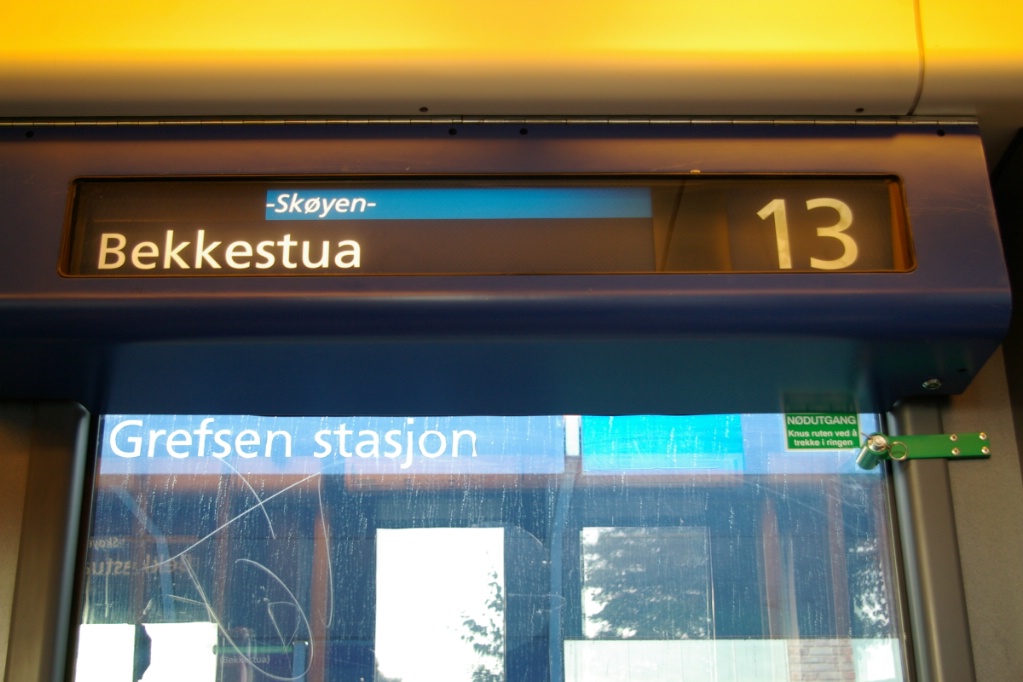

The outbound tram in this photo has a destination sign with a blue colour line on it. Prior to 2005, there was a route 10 tram (see photo of 1997 map) that operated between Jar (Bekkestua late evenings) and Disen via Aker brygge that was colour coded blue. These destination signs saw a second life.

The left portion of the blue section has been blacked out as it says "Aker brygge", however from mid-July to mid-August 2008, some signs could be seen with this visible. They were correct as route 13 was being detoured via Aker Brygge during that time.

Prior to 2006, Bekkestua, Egne hjem, Ringstabekk, and Tjernsrud were stations on T-bane line 6, but had tram service late evenings when the T-bane did not operate. In addition to these stations, Jar was served by T-bane line 6 as well as tram service all day. Due to this, these stations had both a high-level platform for T-bane trains as well as a low-level platform for trams.

Inbound route 13 arriving at Ringstabekk.
Note the high-level platform in the background.

This T-bane service used 3-car trains with overhead power. Thus, T-bane trains on line 6 had to operate with both overhead and third rail power, since much of the T-bane system uses only third rail. Plans to upgrade the line to Bekkestua to full metro capabilities (third rail power and 6-car train length stations) have been in the works for some time with a number of political delays.

When upgrade work began on the part of line 6 between Jar and where full metro standards ended, service was halted but tram service to Bekkestua was provided all day. Since December 2, 2007, route 13 goes as far as Bekkestua, though the extension beyond Jar only operates on a 20 minute basis (30 minutes on Sunday mornings).

More recently, approval has been granted to upgrade the line all the way to Bekkestua and as this work gets underway, tram service now only operates to Jar.

Prior to the closure of this part of T-bane route 6, Jar had the rare characteristic of being a station that was served by both metro trains and trams on the same tracks throughout the day (3 stops in Cleveland have this characteristic). While the other stops to Bekkestua were served by both T-bane and trams, they did so at different times of the day.
